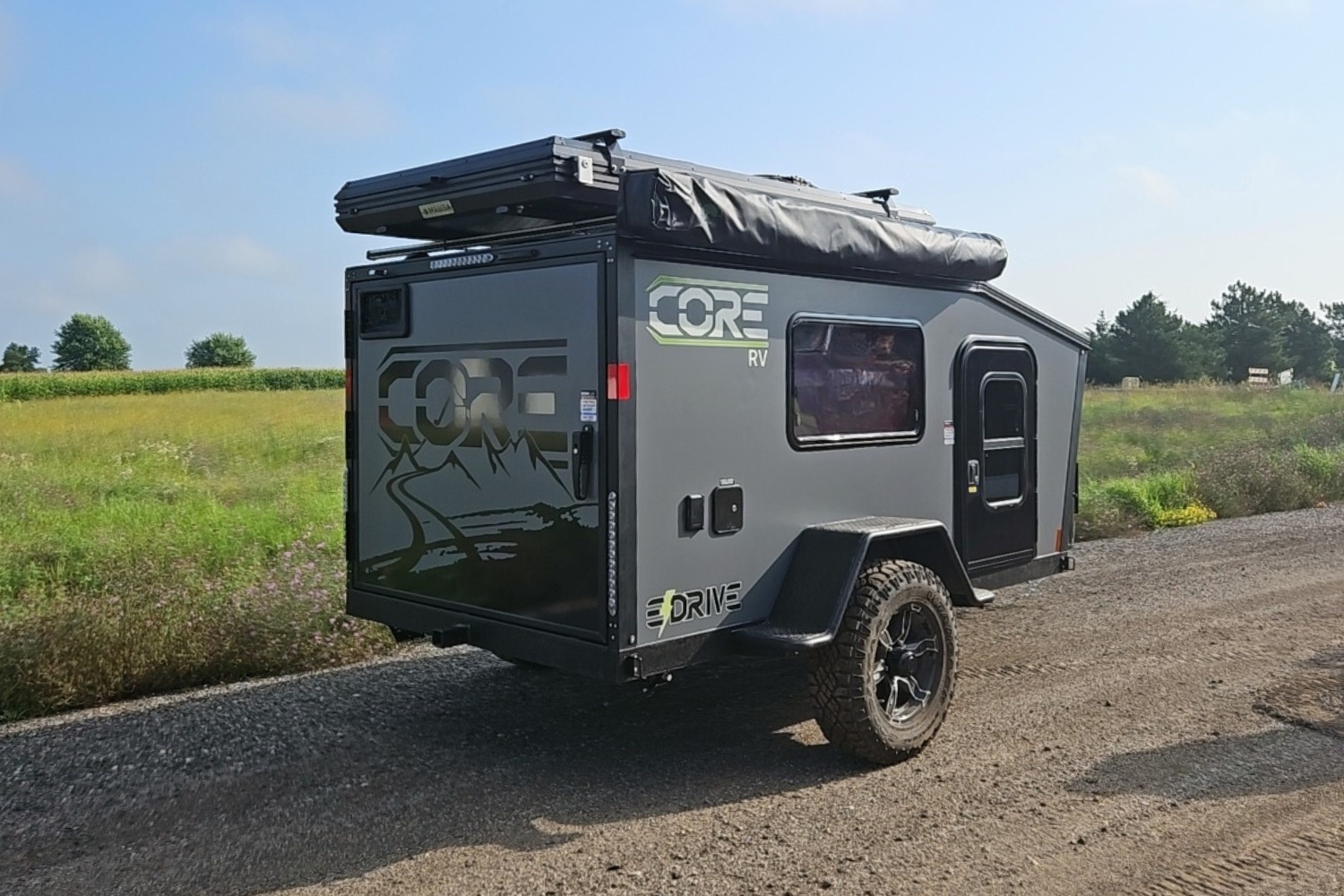

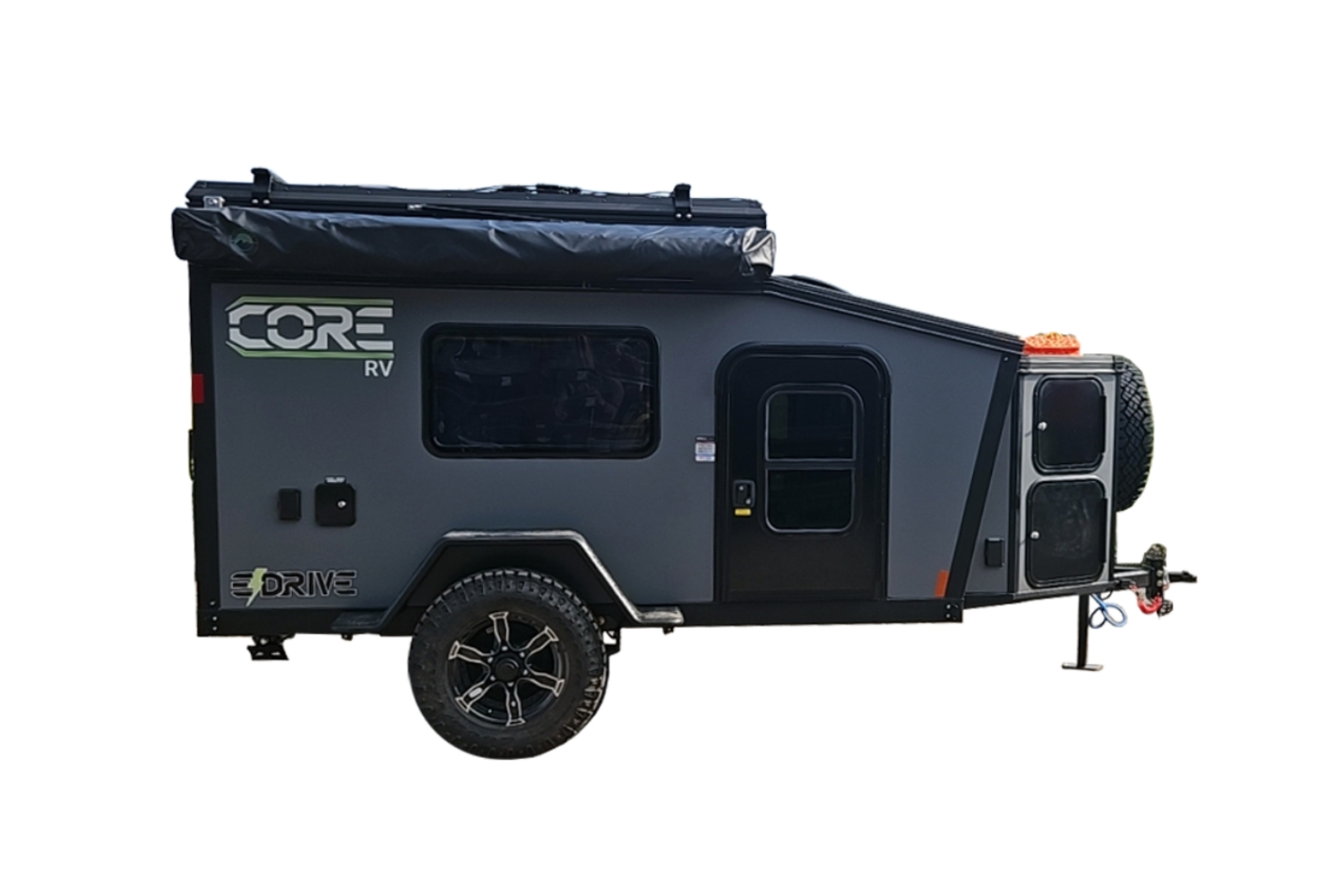

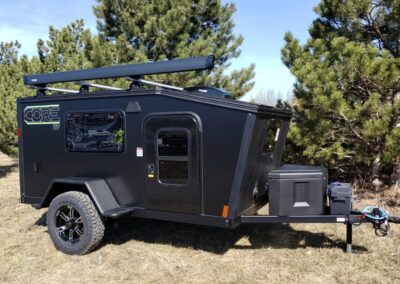

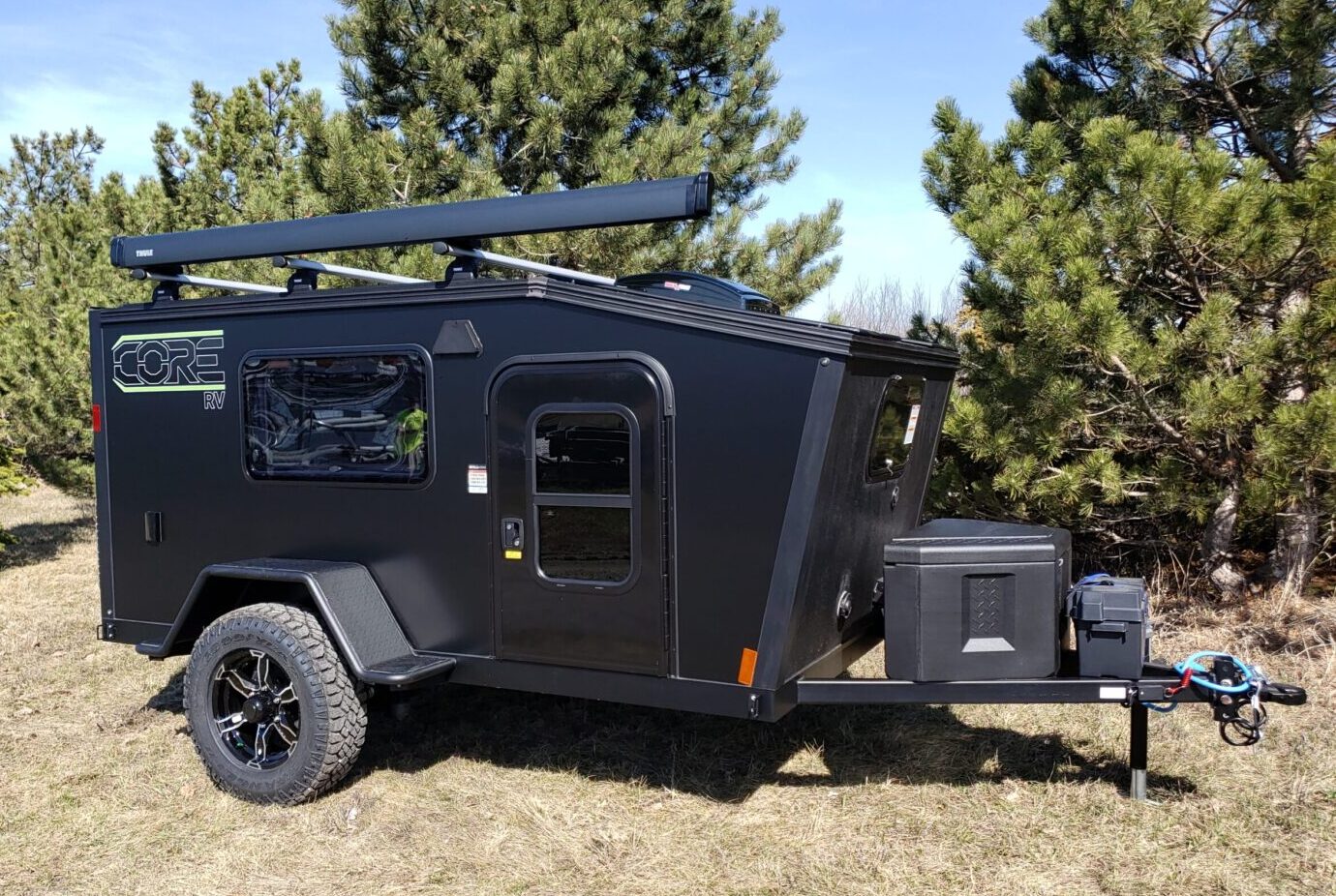

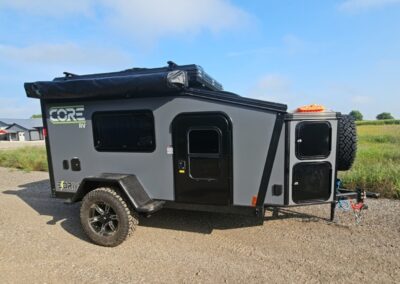

CORE RV 5510
Specifications:
Length – 14′
Width – 5.5′
Height – 6′
Rear Galley (L x W x H)
-62.5″ x 23.5″ x 50″
Base Weight – 1,940lbs
GVWR – 3,850lbs
Sleeps Up To 6
Pricing:
MSRP $31,750
FREE E-DRIVE SAVINGS UP TO $5,899
Options, Taxes, Licensing Extra
STANDARD FEATURES + OPTIONS
Click to view the standard features and available options.
CONSTRUCTION
Composite Shell Construction
– INTELLI-CORE Structural Composite Floor, Walls, and Roof

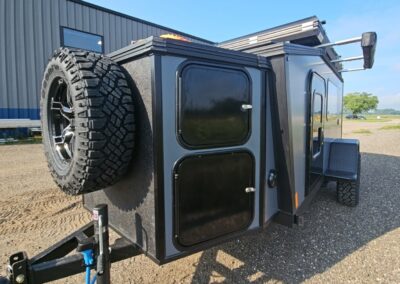

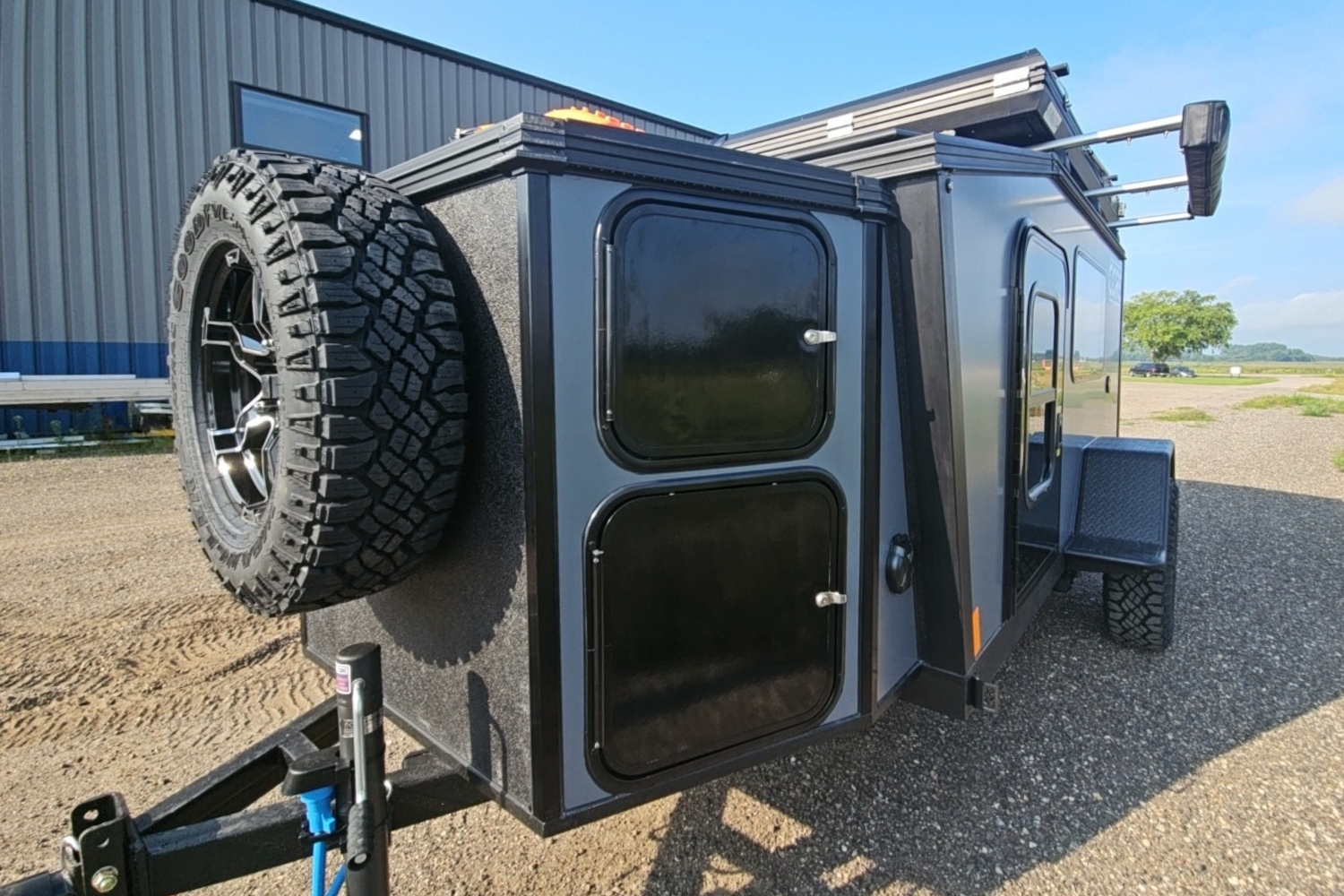

– Two Level Front Storage Box w/ L Track Secured Storage on Top
– Fully Insulated R9 Roof, R9 Floor & R9 Walls
– Non-Skid, Impact Resistant Flooring
– Lightweight, Waterproof PVC Cabinetry
– NO Mold, NO Rot, NO Mildew
– 16″ Aluminum Wheels with Mounted Matching Spare
– 2″ Rear Receiver Hitch for Lightweight Accessory Attachments
– 3500lb HD Timbren Suspension w/ Electric Brakes

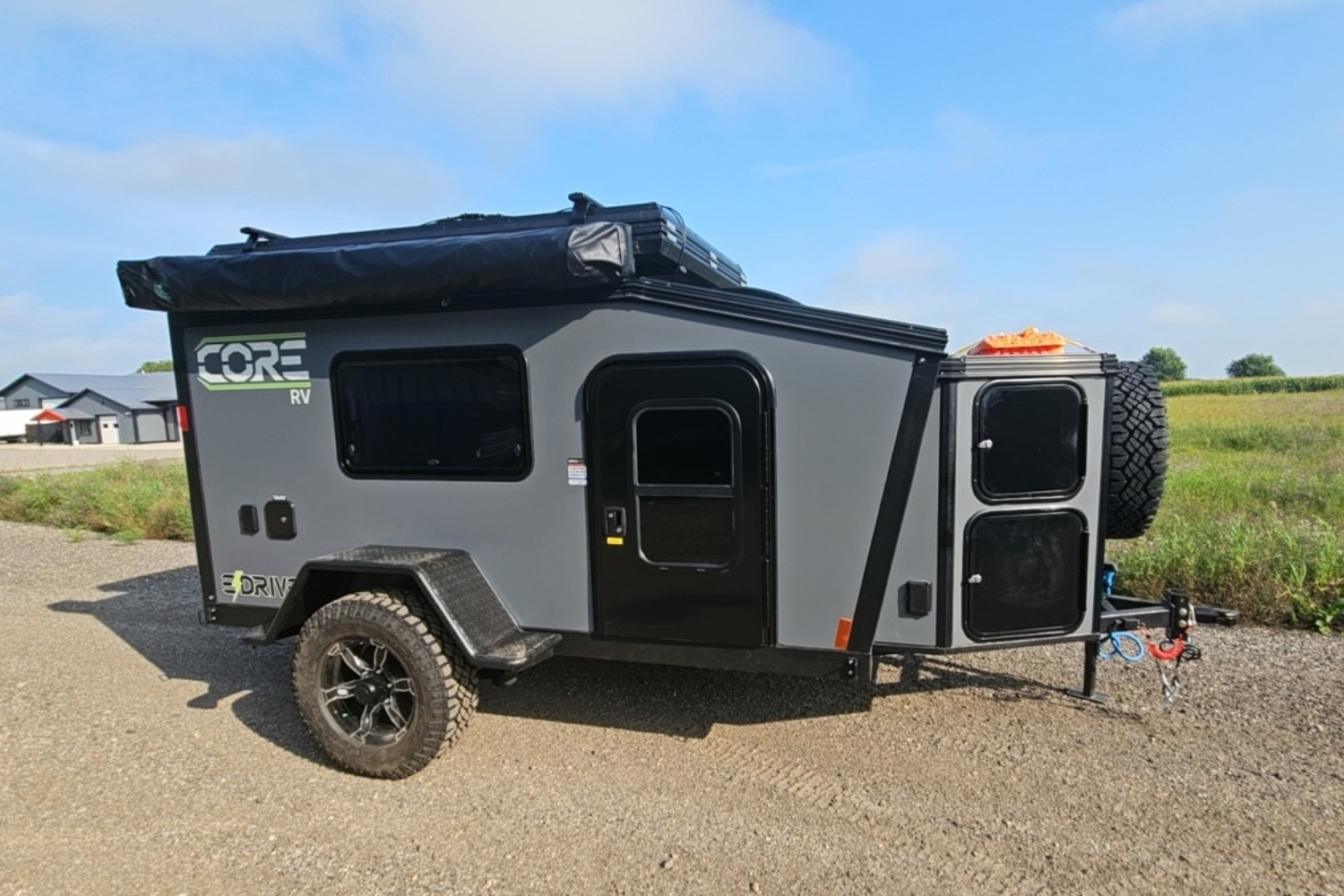

– Dual Side Doors for Easy Entry

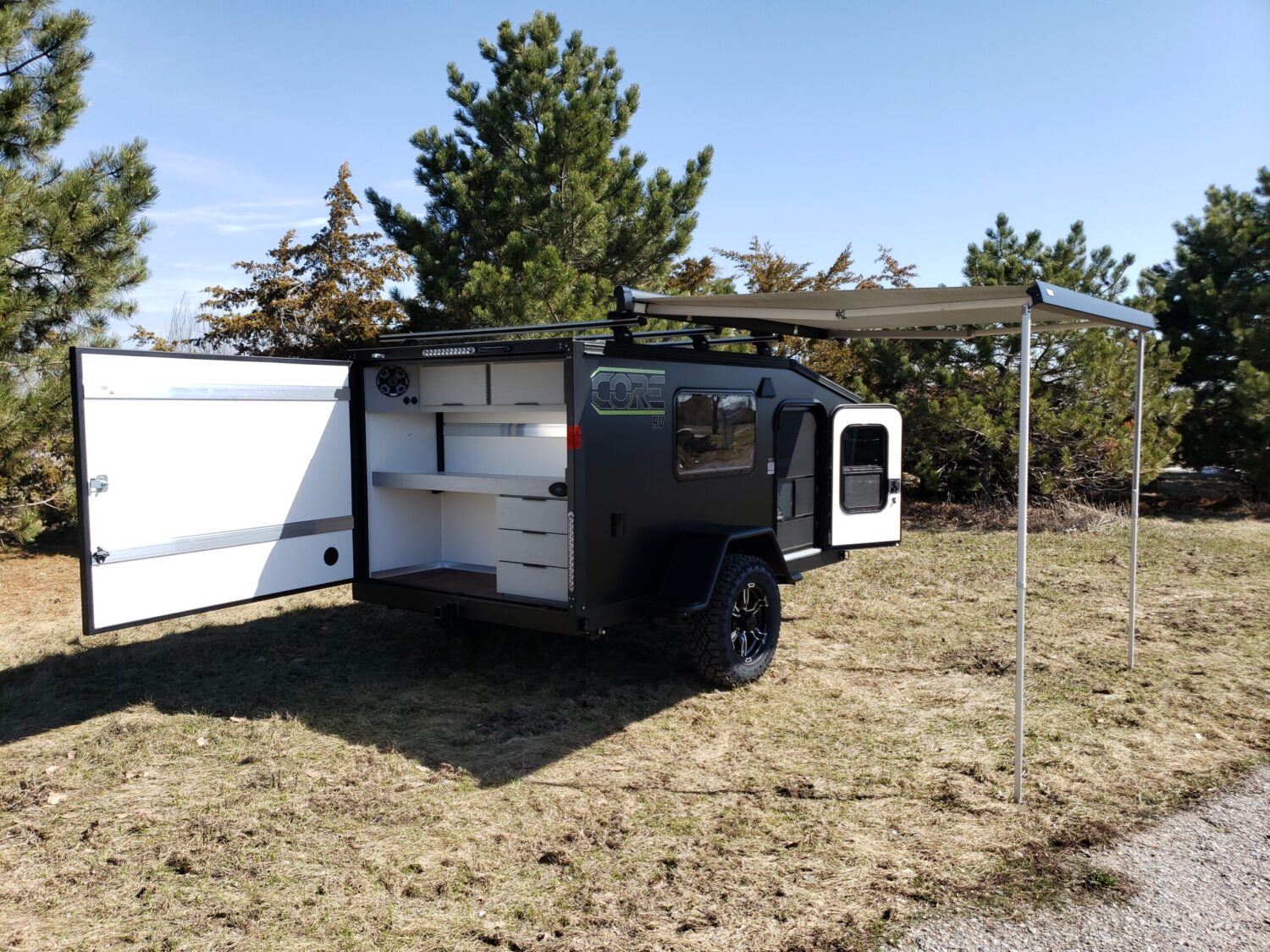

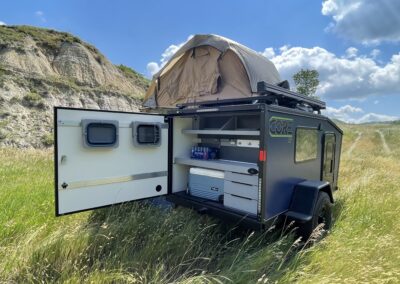

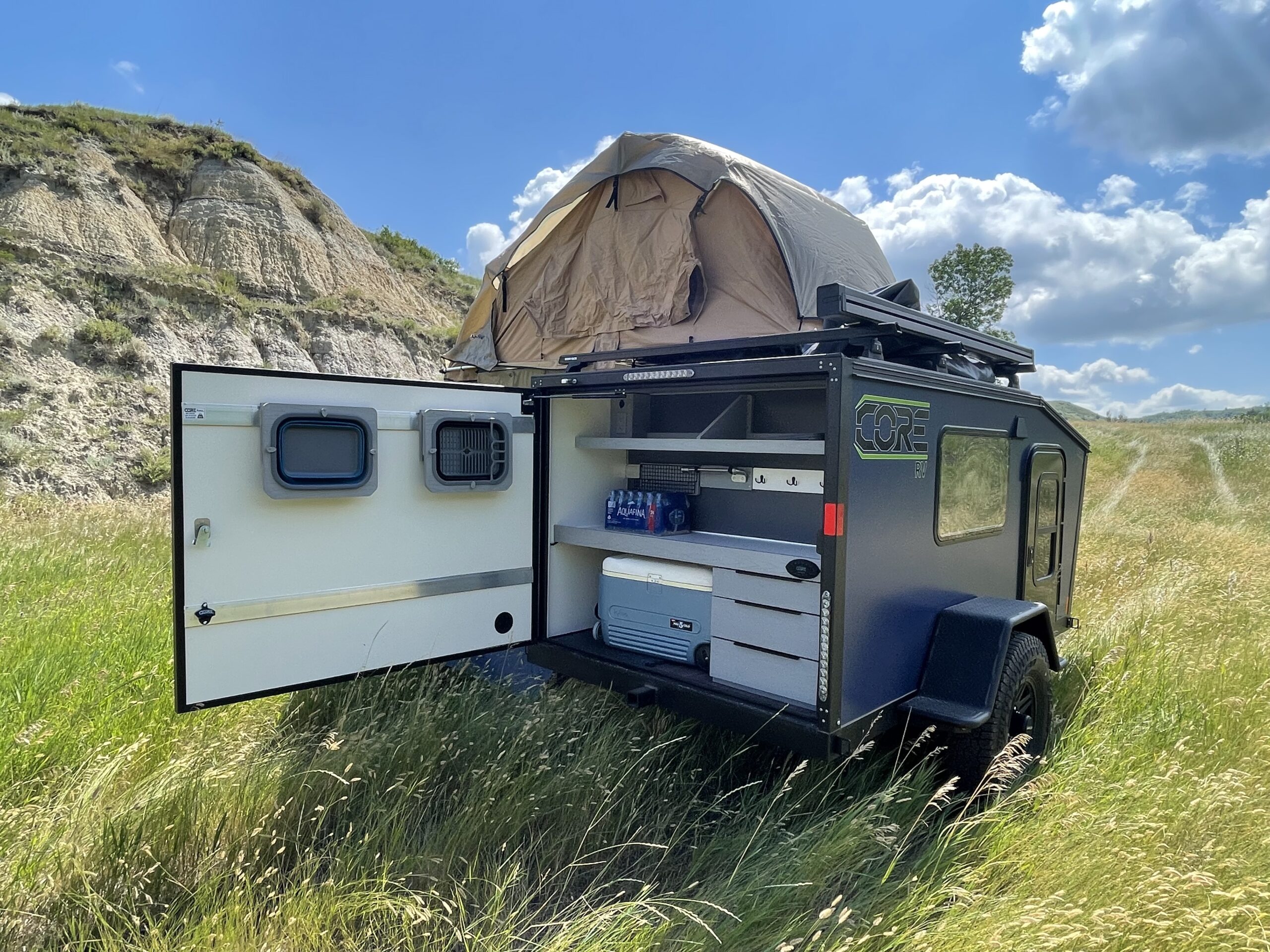

– Rear Galley (L x W x H) 62.5″ x 23.5″ x 50″
ELECTRICAL
– 300AH Lithium Battery

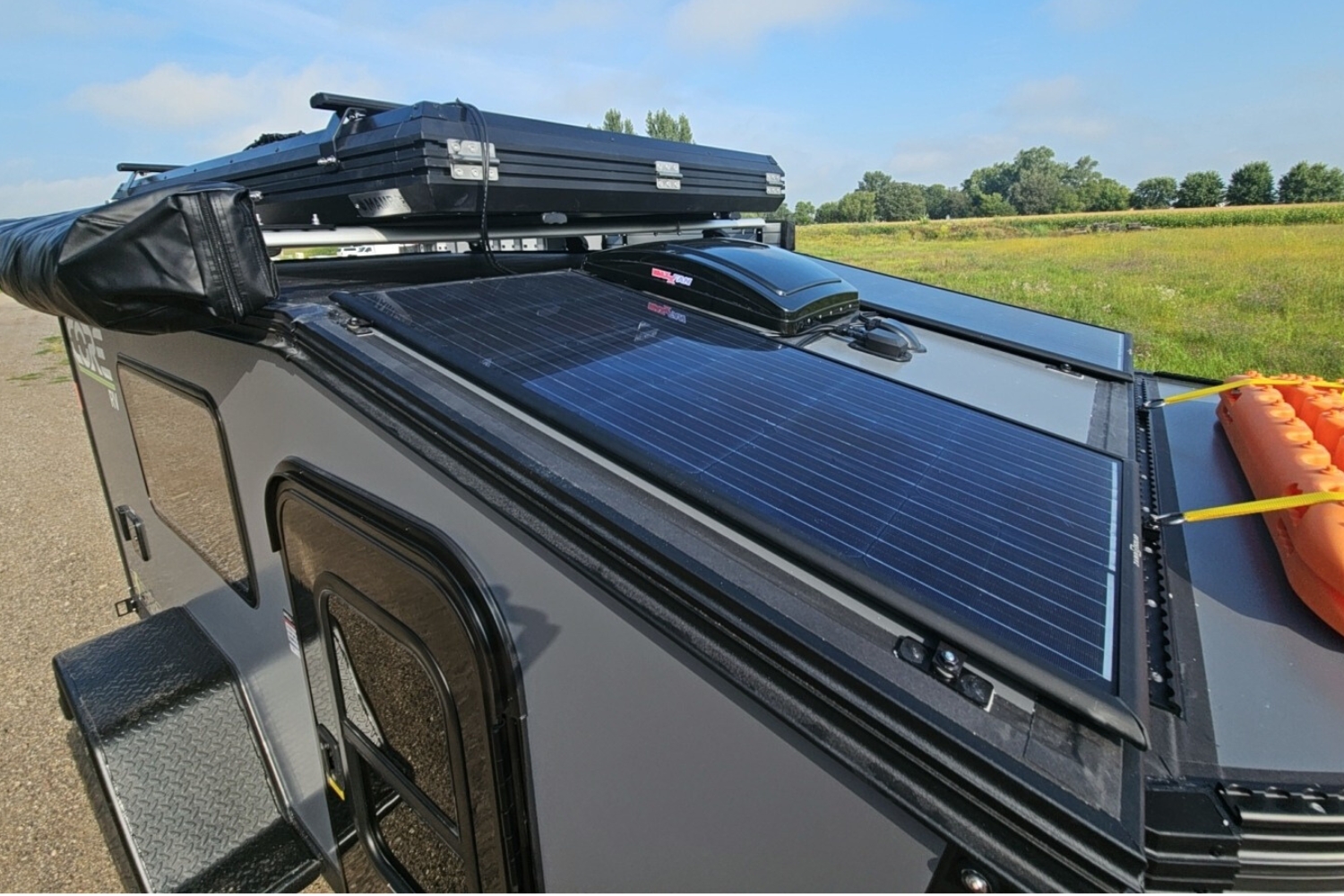

– 200W Solar Panels
– Full Perimeter Interior LED Lighting w/ Dimmer Control
– LED Task Lighting
– 110V Outlets, 12V Outlets, USB Charge ports

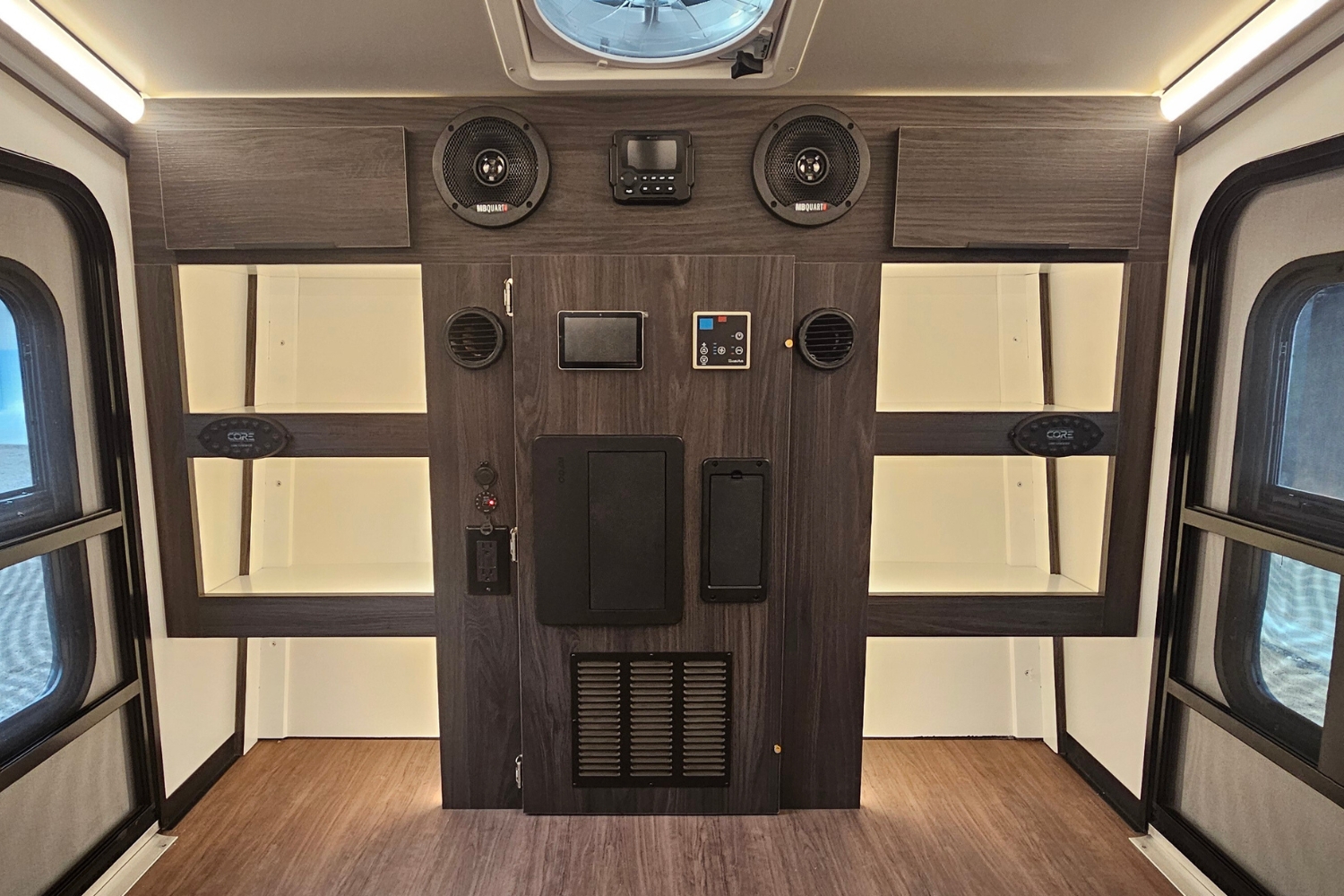

– 30 Amp Power Center w/ Battery Voltage Gauge
– Battery Disconnect Switch
– Front Tongue-Mounted Battery Box
– Smoke Detector, Fire Extinguisher
– LED Trailer Lighting

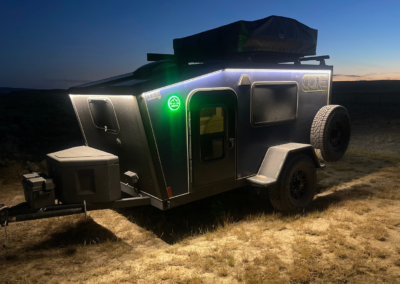

– Full Perimeter Exterior LED Lighting, Rear Work Lights, Front Work Light
– Cold Weather 7-Way cold
– Bluetooth Unit Control Through Phone App
FEATURES
– PVC Cabinetry
– Dual Pane Acrylic Windows with Built-In Roll-up Screen and Roll-down Darkening Shade System
– Full Tilt Out Windows For Use During Rain Days

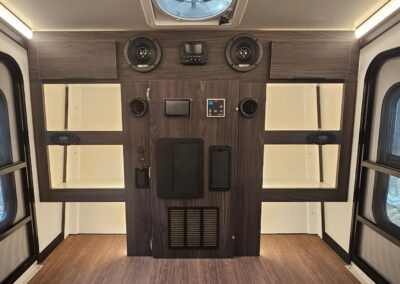

– CORE-Rail Track System for Hanging Shelving, Cup Holders, and Other Useful Items to Customize to Your Needs
– Electric 110V, 1000W Furnace
OPTIONS
Electrical
E-DRIVE:
– Up to 12kWh Energy Storage w/ Lithium Batteries 200W Solar Panel Package
– 2.4kW Inverter w/ 5.5kW Boost
– Exterior Plug for Portable Solar
Comfort
– High Efficiency Forced Air Truma VarioHeat Furnace (LP/12V)
– 9000 BTU Air Conditioner w/ 9000 BTU Heat Pump, Variable Speed (110V)
– 12V Rooftop Air Conditioner

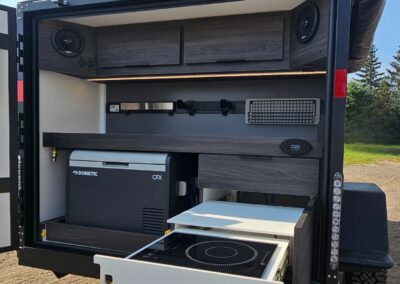

Refrigeration and Cooking

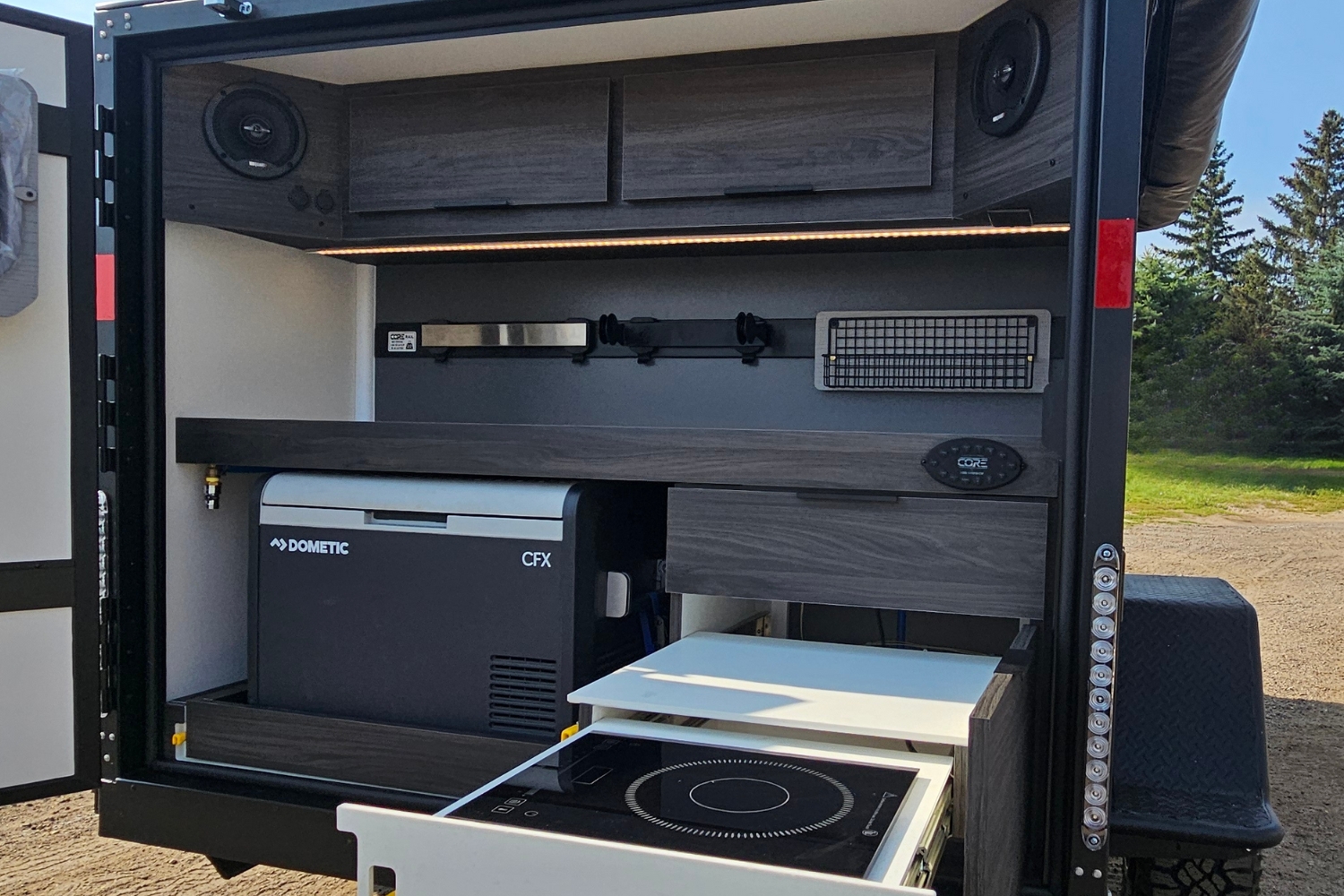

– Cooktop in Rear Galley: Electric or Propane

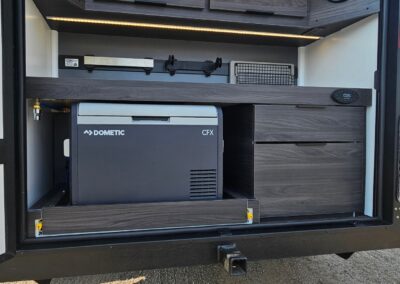

– Dometic 12V/110V Fridge and Ice Maker
Water System
– 11 Gallon Fresh Tank w/ Pump and Road Side and Galley Connections
– Add Up To 22 Additional Gallons Of Water Capacity
– Hot Water Heater
Other

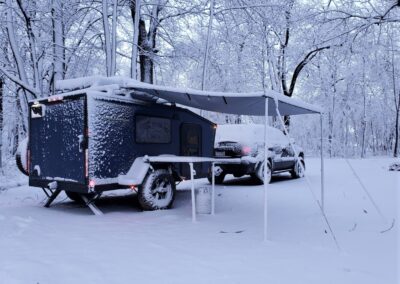

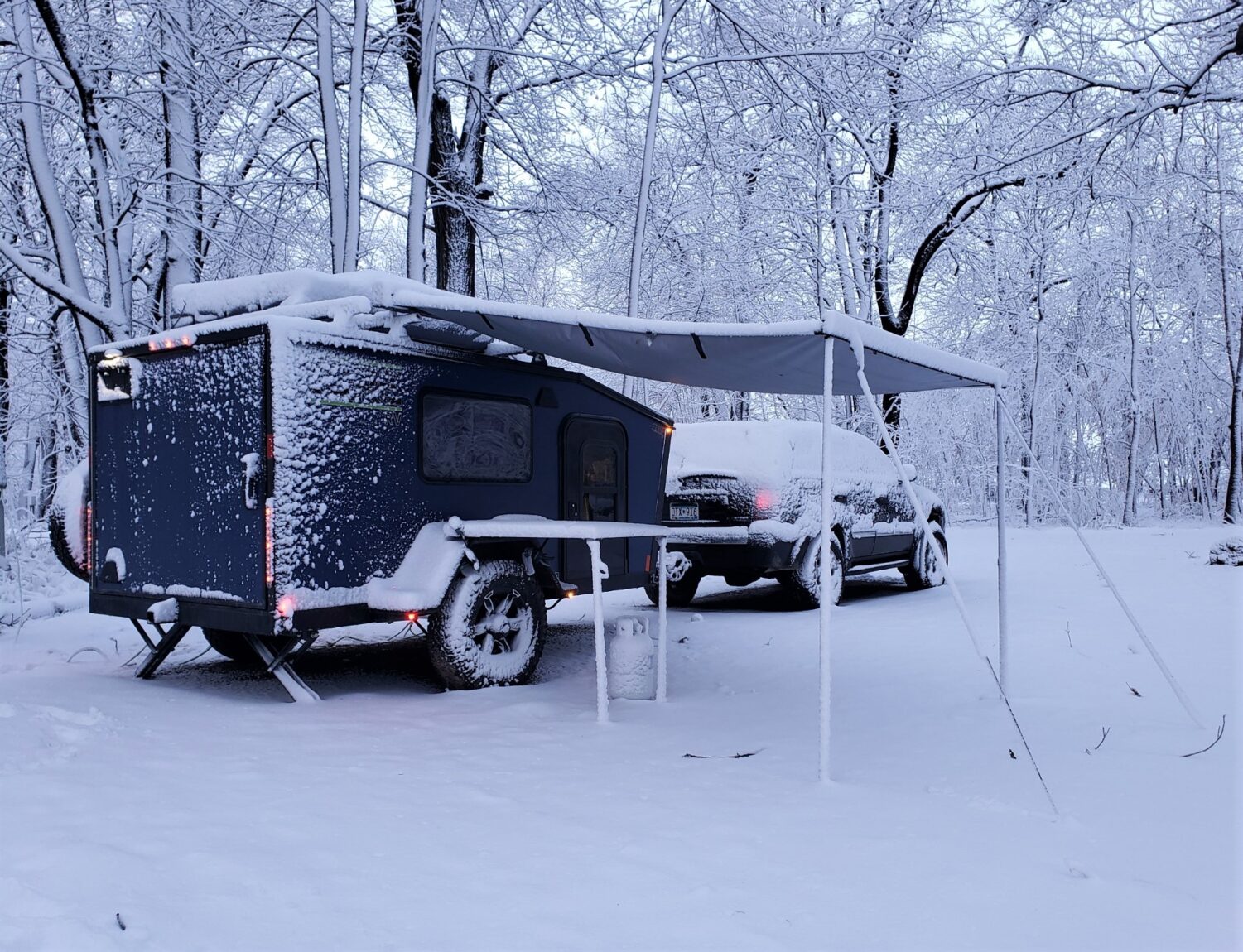

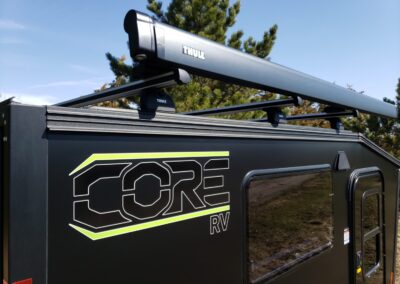

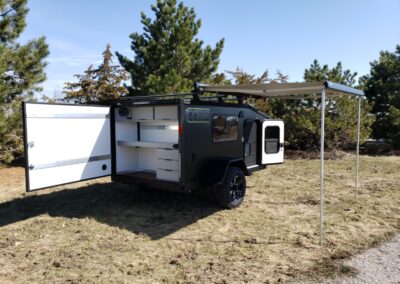

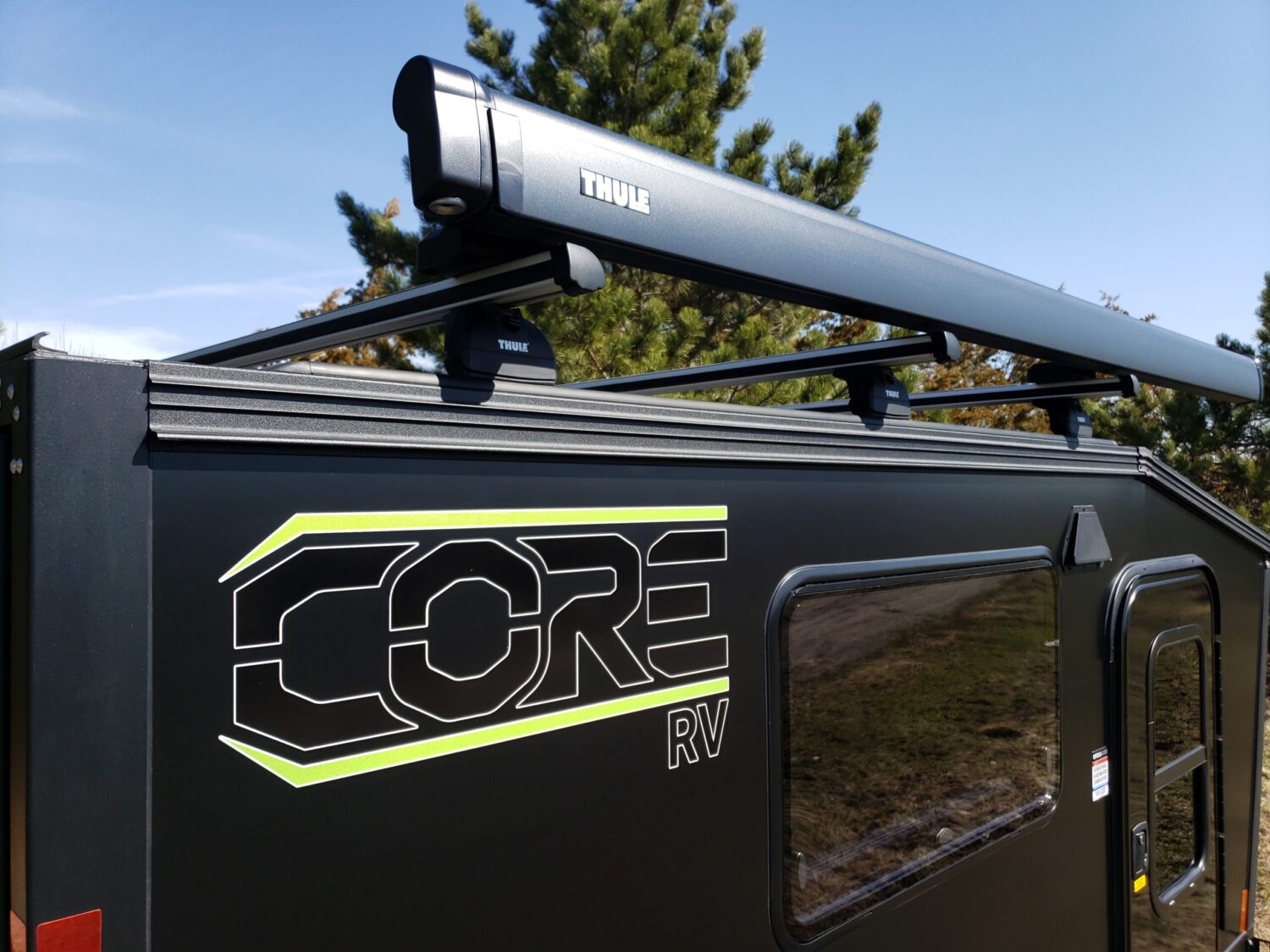

– 270 Degree Nomadic Awning
– Roof Tent Options
– Shower Enclosure
– Lock N Roll Coupler
– MOLLE Panels
– Fridge Tray (29.5″ Wide, 20″ Deep, 19.5″ Tall Opening)
– Custom Graphics
– Exterior RGB Perimeter Lighting

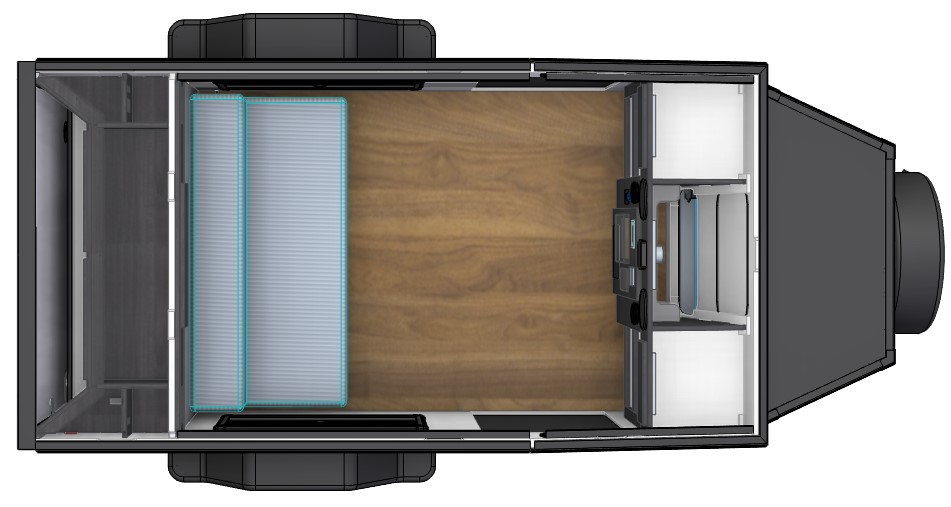

FLOOR PLAN
Higher Quality
COMPOSITE PANEL CONSTRUCTION
100% composite panel construction is extremely lightweight, strong, durable, dent-resistant, and waterproof.
STAY WARM OR COOL
The best insulated trailers on the market allow for quick and easy heat up or cool down for maximum comfort with minimal power needs.
GROUND CLEARANCE
Torsion suspension and open undercarriage design improves approach angles and increases off-road capability. Wiring is protected inside the trailer and not exposed under the frame.
