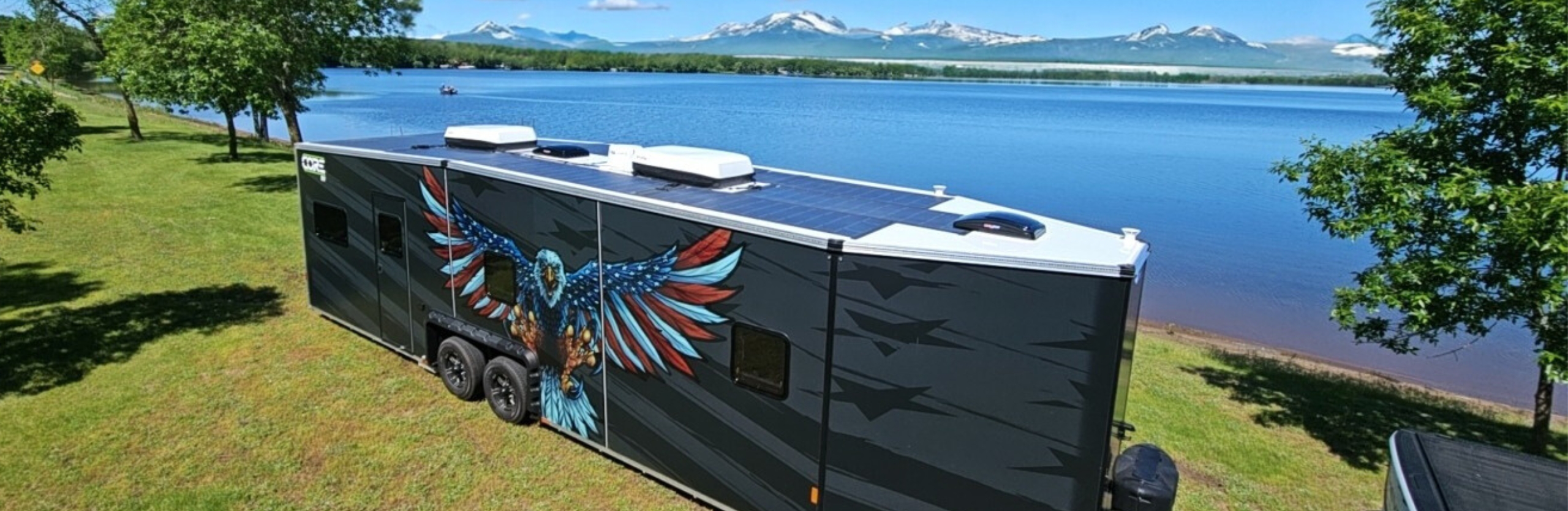

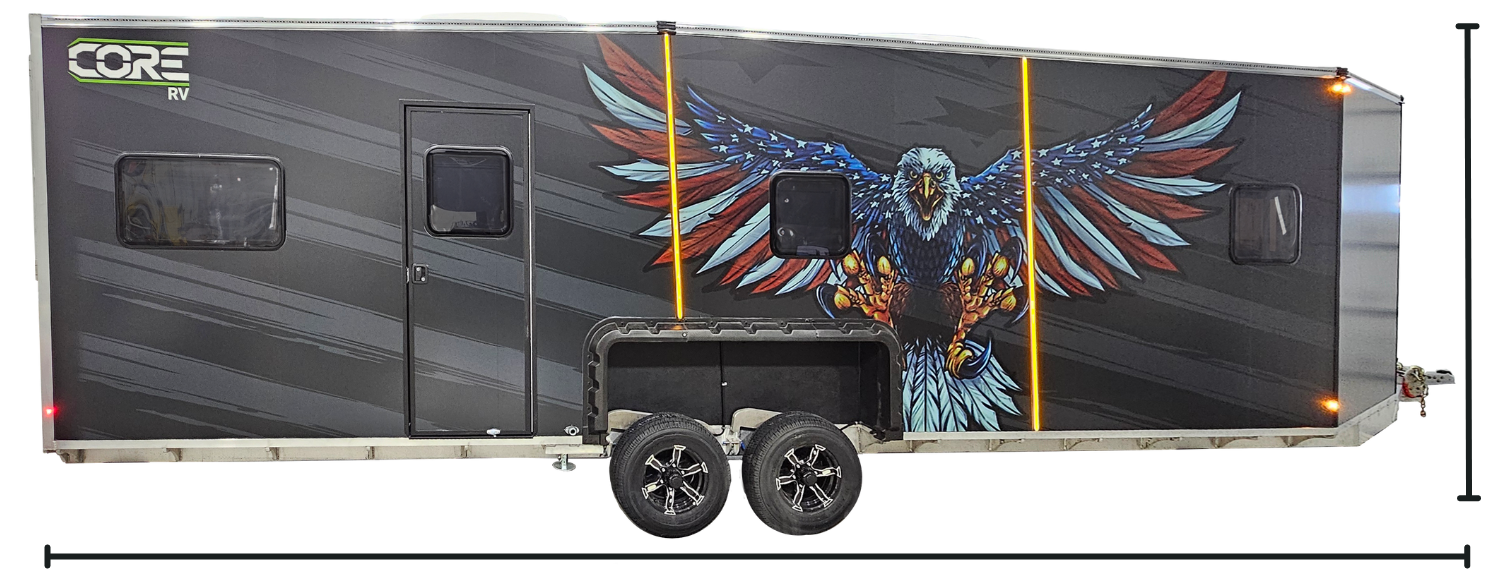

CORE RV 8032
Specifications:
Length – 36′
Width – 8′ 6″
Height – 10′ 8″
Garage Space (L x W x H)
– 137″ x 73″ x 85″
Base Weight – 7,985 lbs
GVWR – 12,000 lbs
Sleeps 6
Pricing:
MSRP $124,599
Options, Taxes, Licensing Extra
STANDARD FEATURES + OPTIONS
Click to view the standard features and available options.
CUSTOMIZATION
The CORE sales experience is a personal one allowing you to customize the look, feel, colors, and attributes of your dream RV. Some of these customizations and options include:
– Fully contained E-DRIVE capability; expand your travels with lithium batteries and solar re-charging to go where others cannot

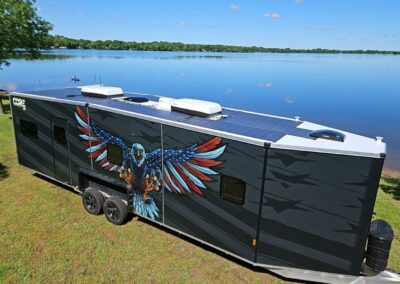

– Exterior full body wrap
– Select your cabinet and backsplash color and style from hundreds of options; you can even mix and match looks for upper and lower cabinets
– Multiple furniture layouts with different pieces; select your furniture color and upgrade to Ultra-Leather
– Pick your interior flooring and wall colors
– Customize the 3D printed parts incorporated into your build
– Improve connectivity with a cell phone booster or wi-fi range extender
CONSTRUCTION
Composite Shell Construction
– INTELLI-CORE Structural Composite Floor, Walls, and Roof
– Aluminum Alloy Frame, 360 Deg Welds at Joints
– Aluminum Wheels
– Tandem Axle Torsion Suspension

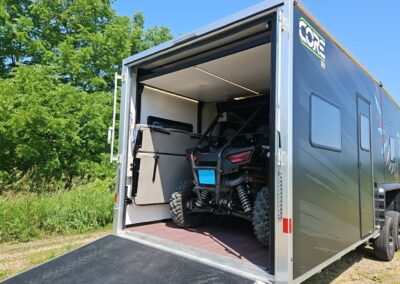

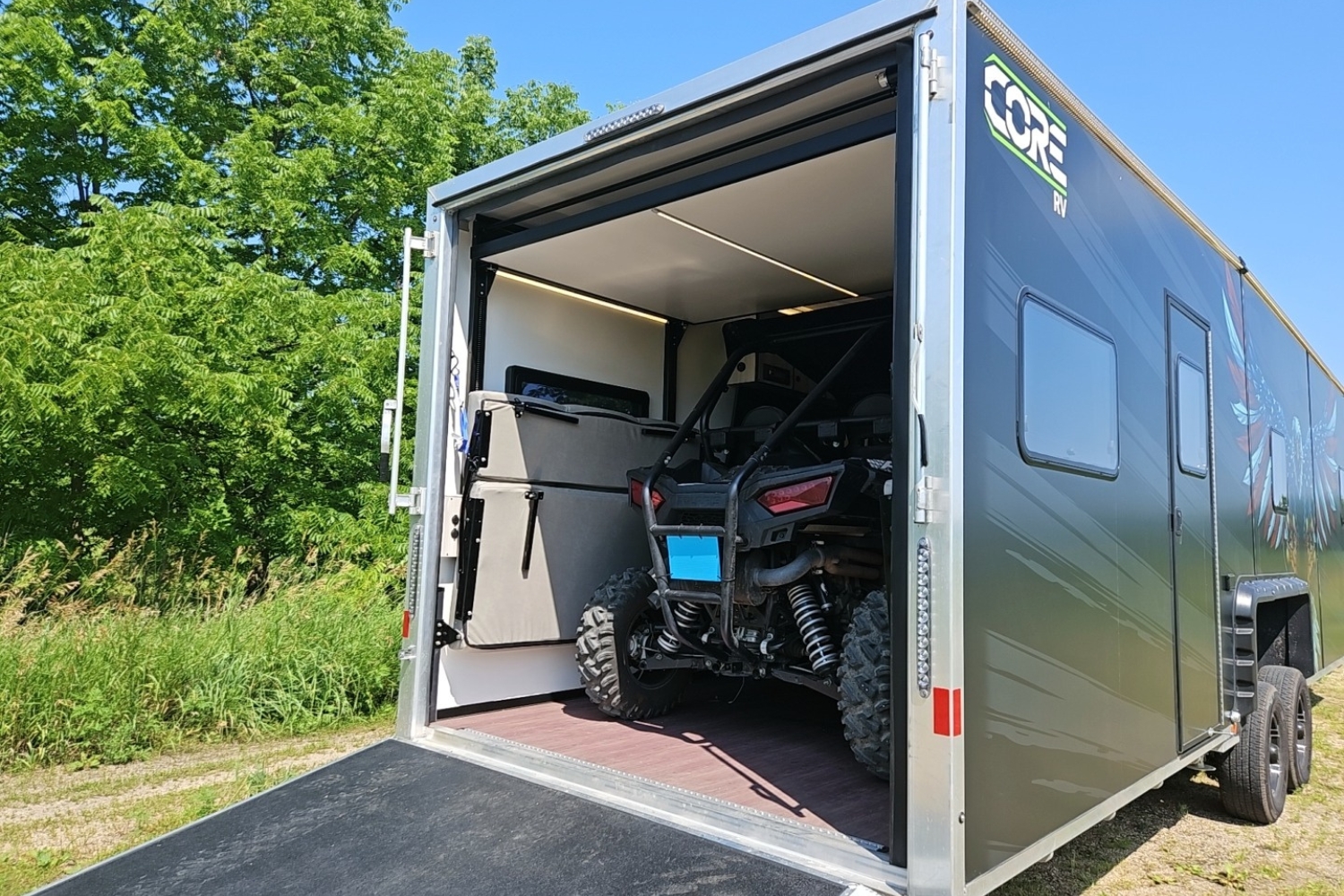

– Fully Insulated Ramp Door w/ 86″ x 85.5″ Rear Opening
– Garage Space: 137″ x 73″ x 85″ (L x W x H)
– Color Matched INTELLI-CORE Structural Composite Doors
– Black anodized interior and exterior trim work
ELECTRICAL
– Bluetooth Capable Unit Control Through Phone App
– Perimeter LED Lighting w/ Dimmer Control; LED Task Lighting
– 110V Outlets, 12V Outlets, and USB Charge ports All Around the Trailer
– 45 Amp Power Center, Battery Gauge, Battery Disconnect Switch
– AM/FM/CD/DVD Stereo w/Bluetooth & Premium Marine Speakers

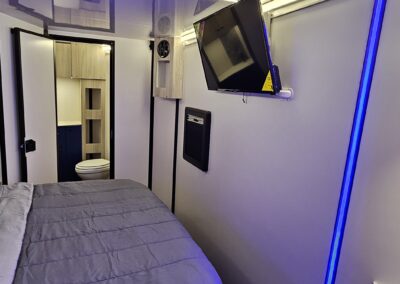

– 110V Smart or 12VDC TVs on Locking Swivel Arm Mount
– King Olympus Antenna for 360 Degree OTA TV including Pre-Wire for Cell Booster and Wi-fi Range Extender
– LP/CO Alarm, Smoke Detector, Fire Extinguisher
COMFORT
– Two High-Efficiency Forced Air Truma VarioHeat Furnaces (12V/LP)
– Two High Efficiency, Low Profile A/C Units (15K BTU, 13 amps Power Draw, 110V)
– On Demand Hot Water w/ Truma AquaGo Water Heater (12V/LP)
BATHROOM + KITCHENETTE

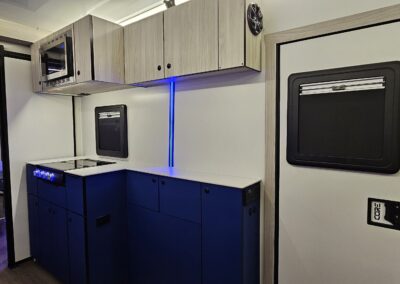

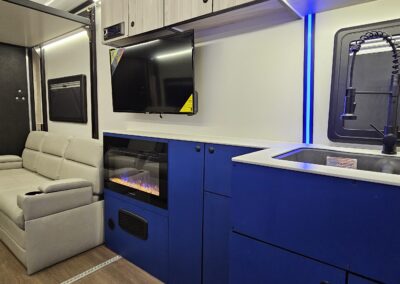

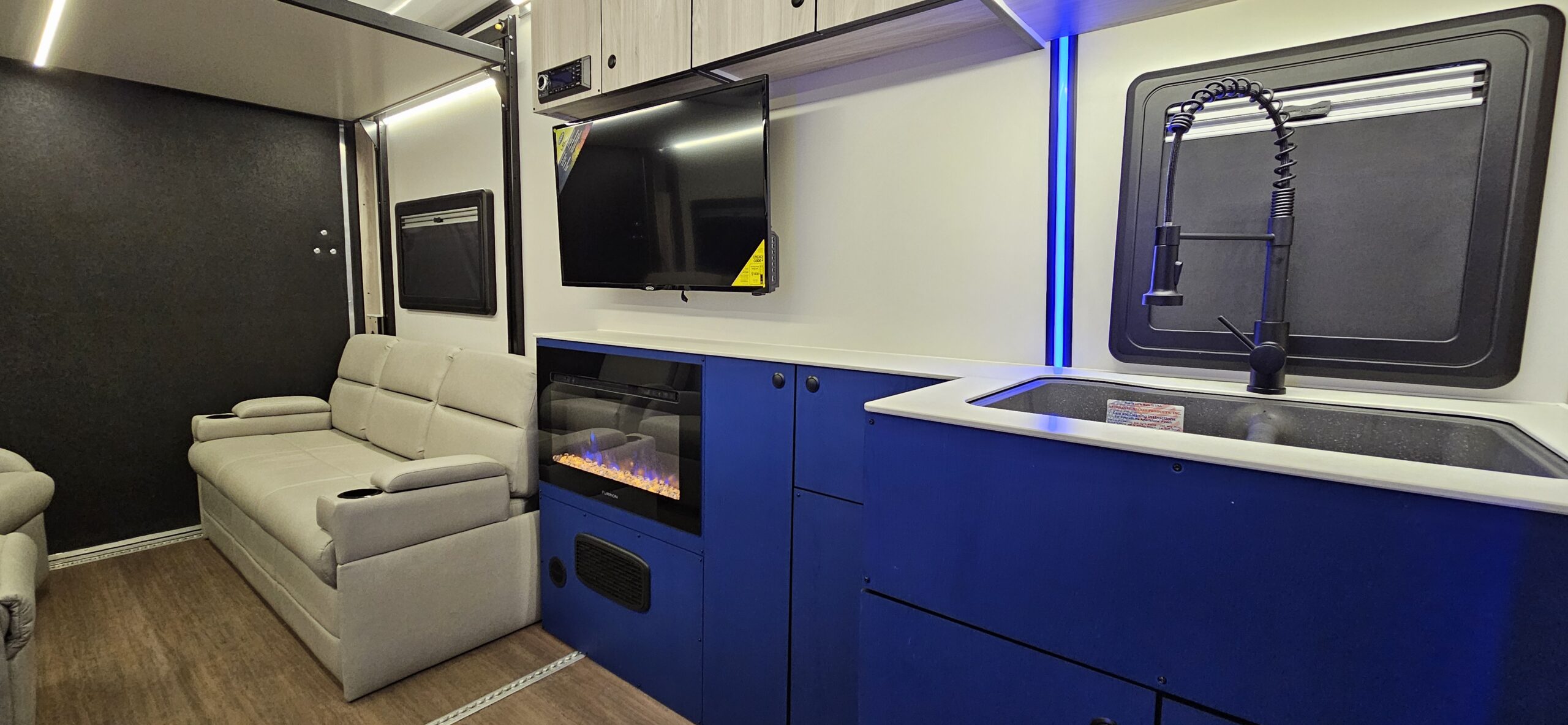

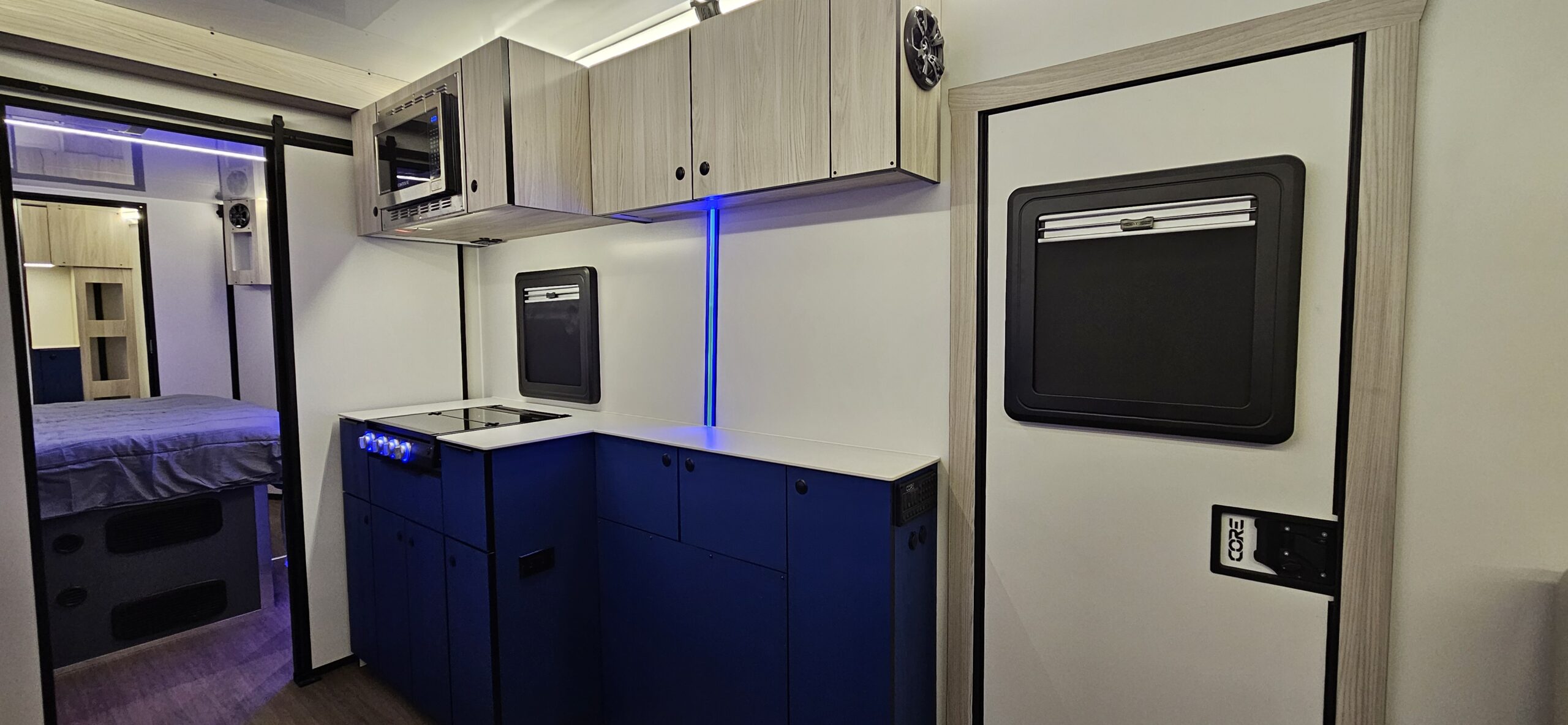

Kitchen

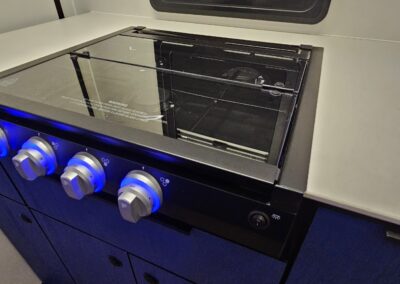

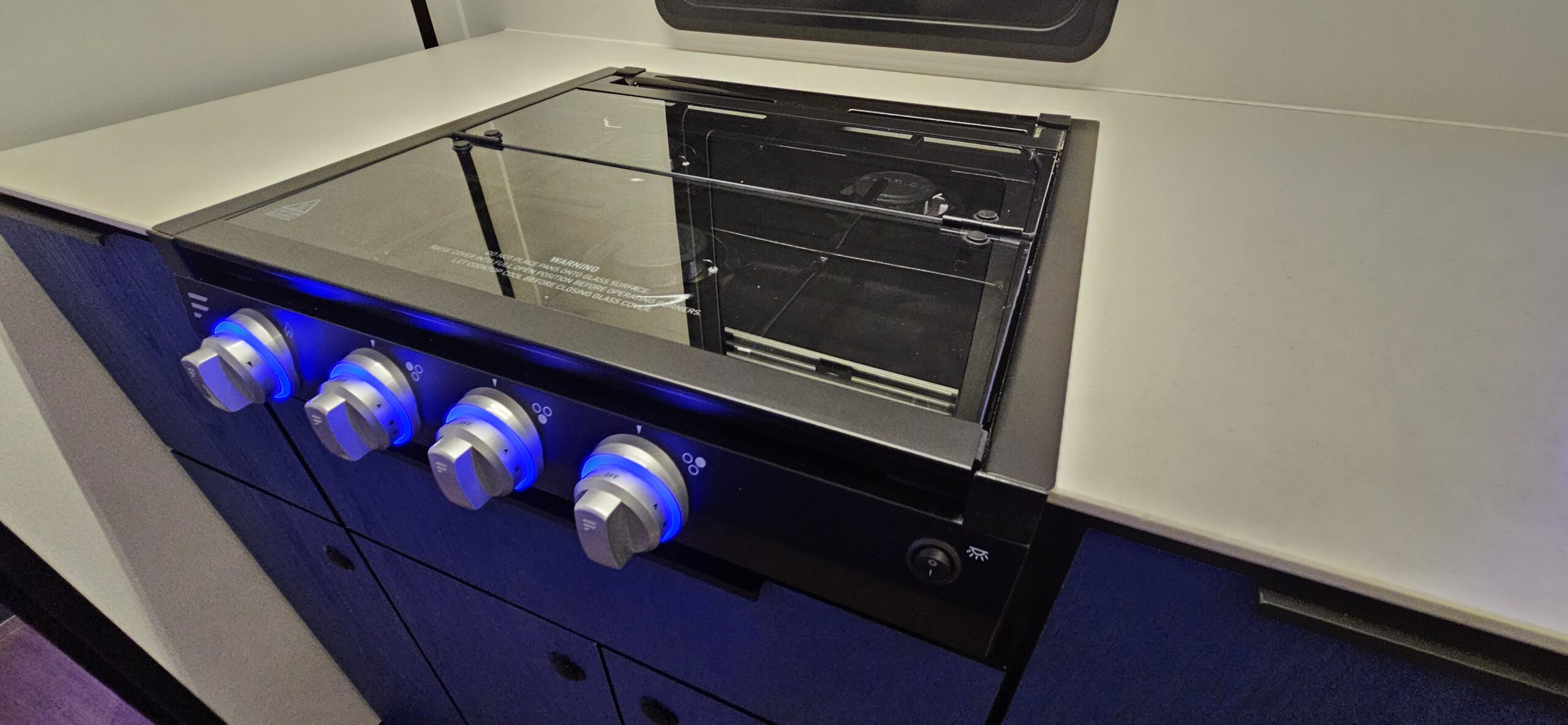

– 3 Burner Cooktop w/ Flush Glass Top and Exhaust Fan

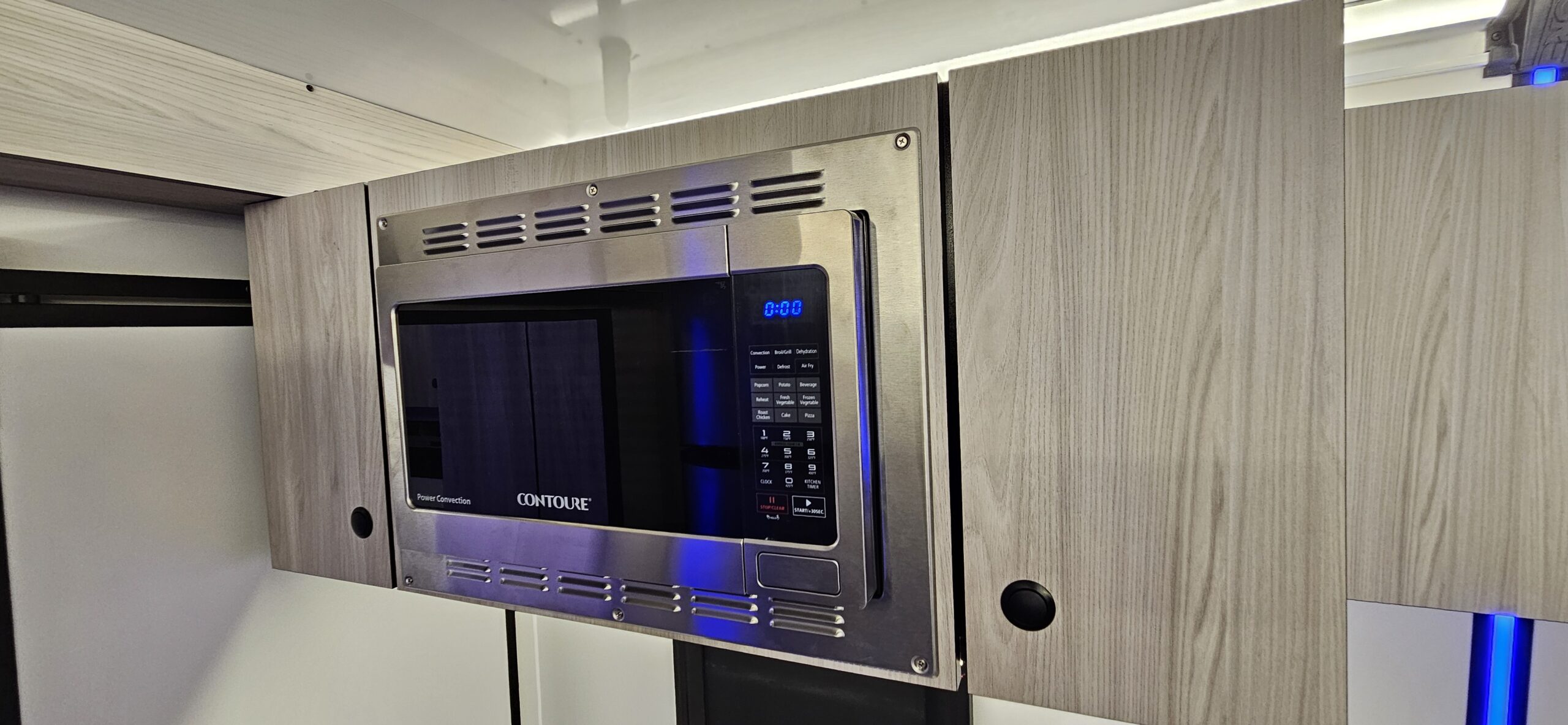

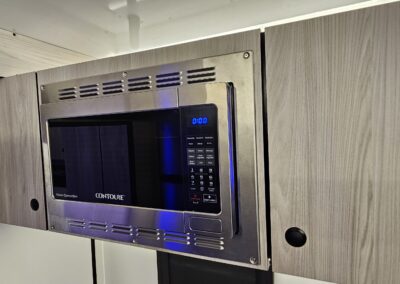

– Stainless Steel 1 Cu Ft Convection Microwave

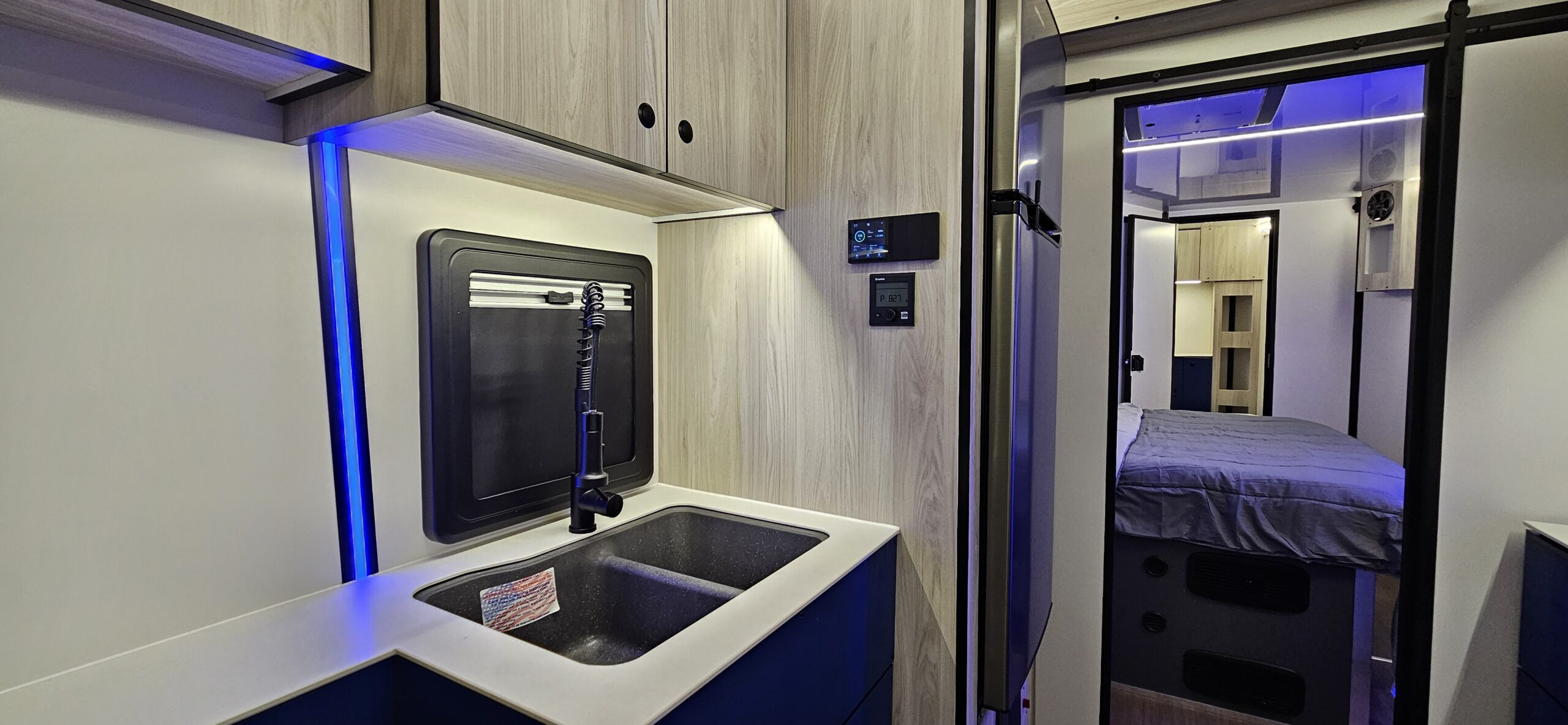

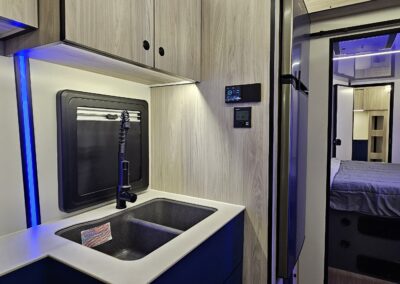

– Double Basin Kitchen Sink
– Large 10 cu ft Refrigerator that Runs on 12V. Run It Down the Road; No Hole in the Wall!
Bathroom
– Full Flushing Toilet

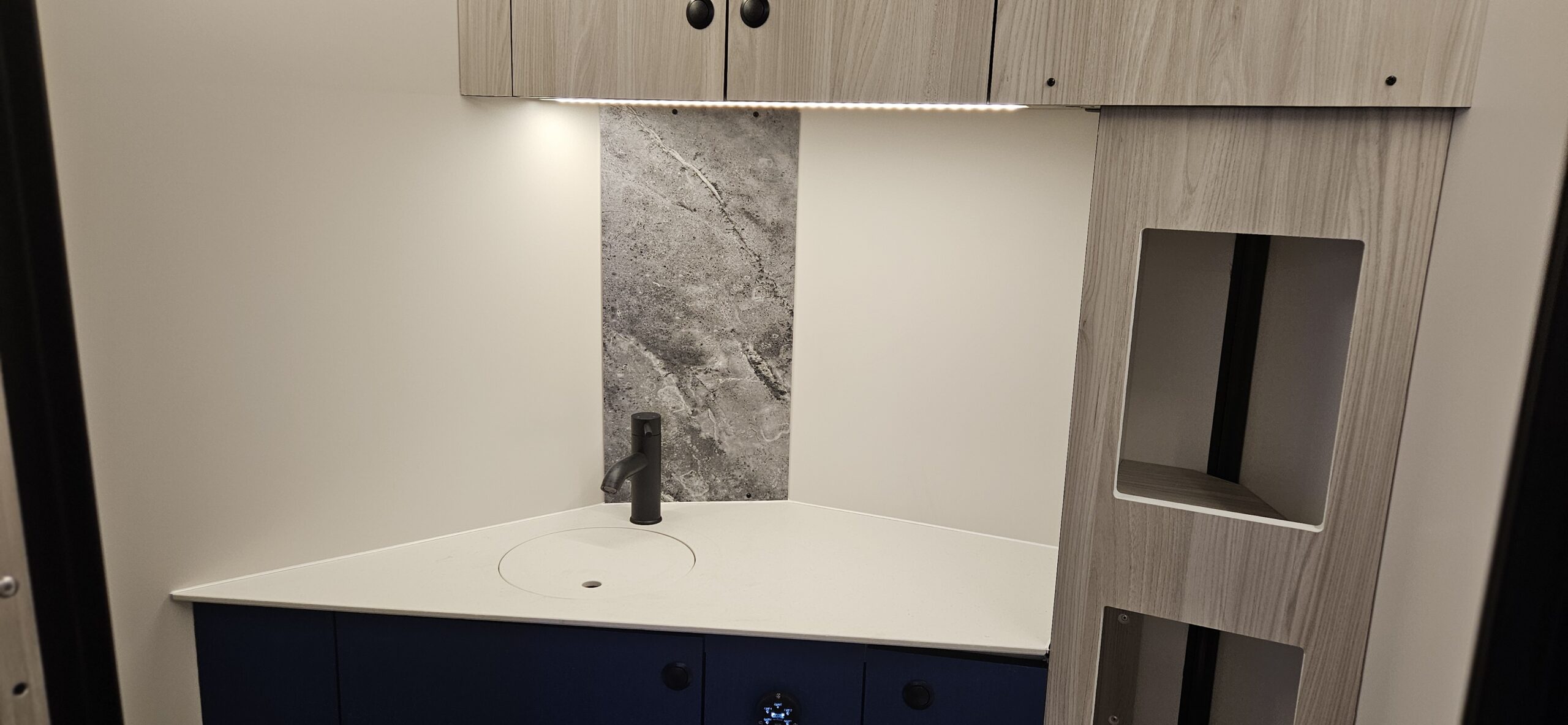

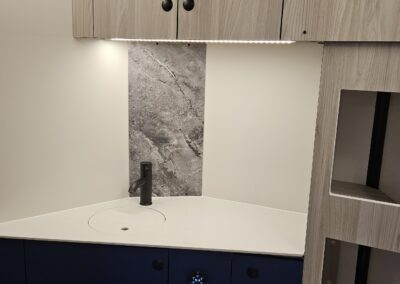

– Sink in Bathroom
– Large Shower
– Advanced Water System w/ Year-Round Usability
– Quick, Easy Drain Down
– Low Maintenance
TANK CAPABILITIES
– 100 Gallon Fresh Water Tank
– 55-80 Gallon Grey Water Tank
– 33 Gallon Black Water
OPTIONS
Electrical
– Electric Side Awning w/ Auto Rain and Wind Control
– Exterior RGB Lighting Package
E-DRIVE:

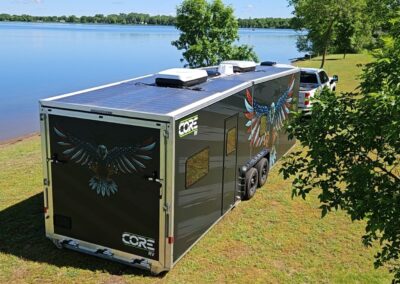

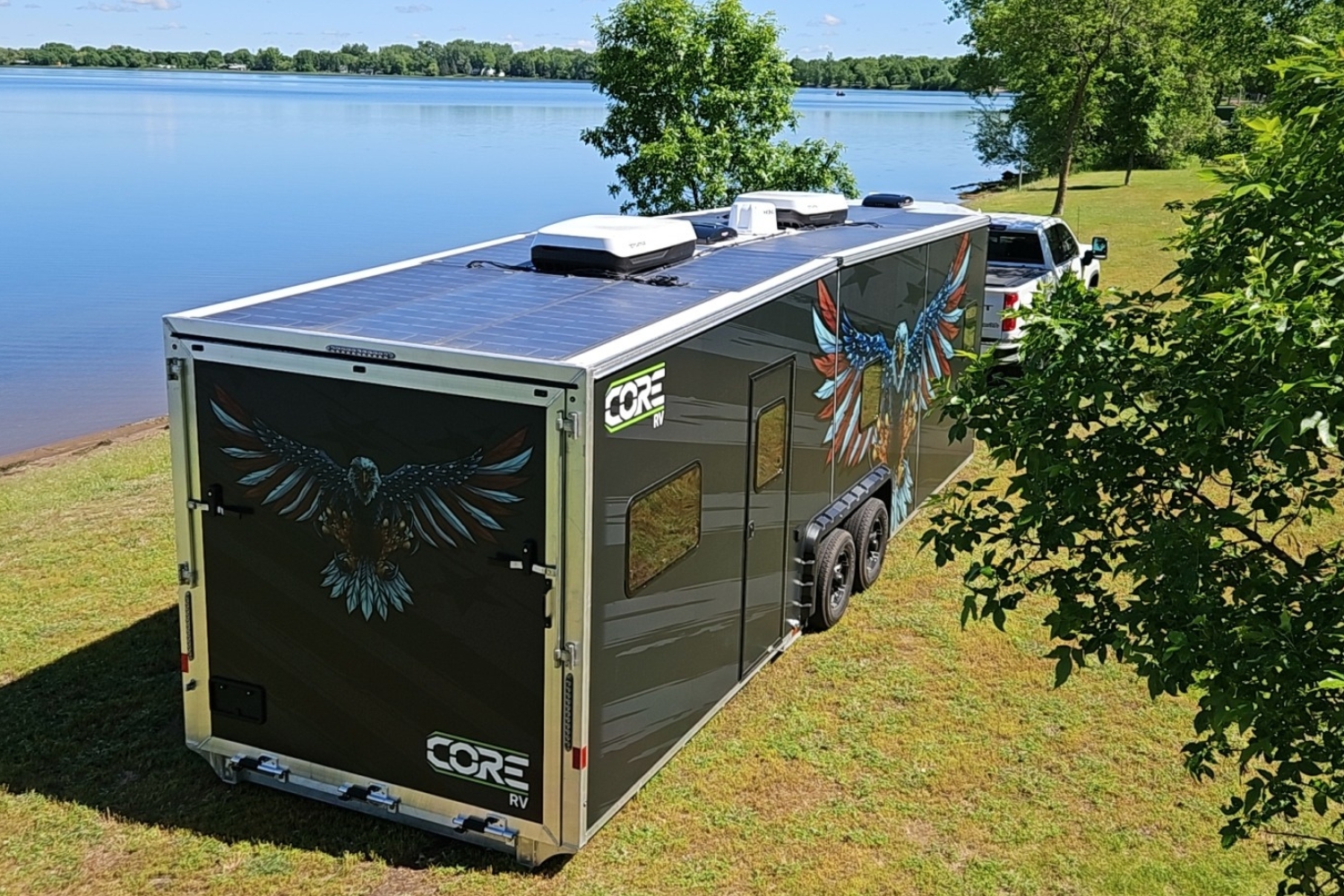

– Up to 2.5kW Solar Panel Package
– Up to 30.6kWh Energy Storage
– 4kW Constant 120VAC Power / 9kW Boost
Entertainment
– Fusion Exterior In-Wall Marine Soundbar
– Exterior Coax Port

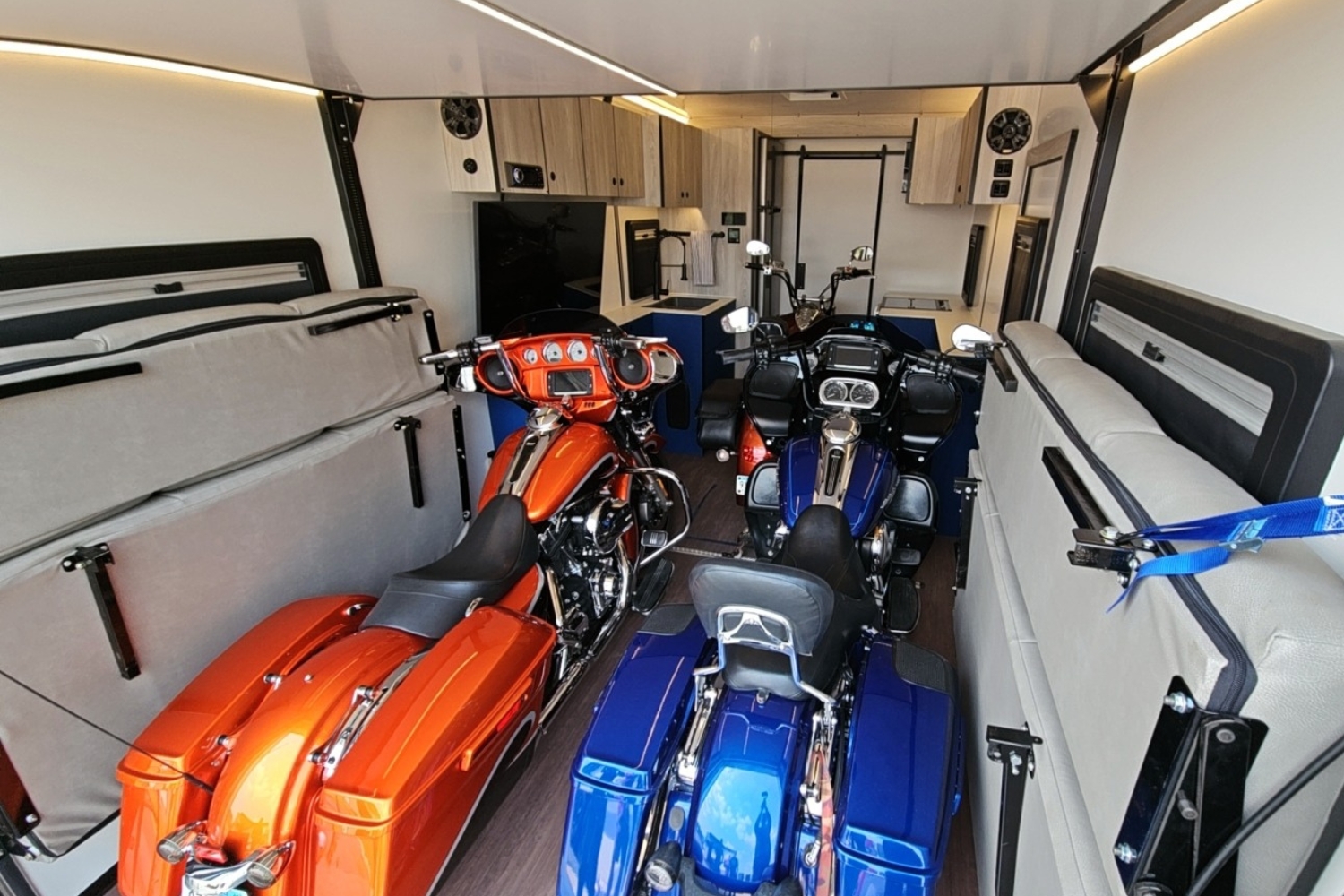

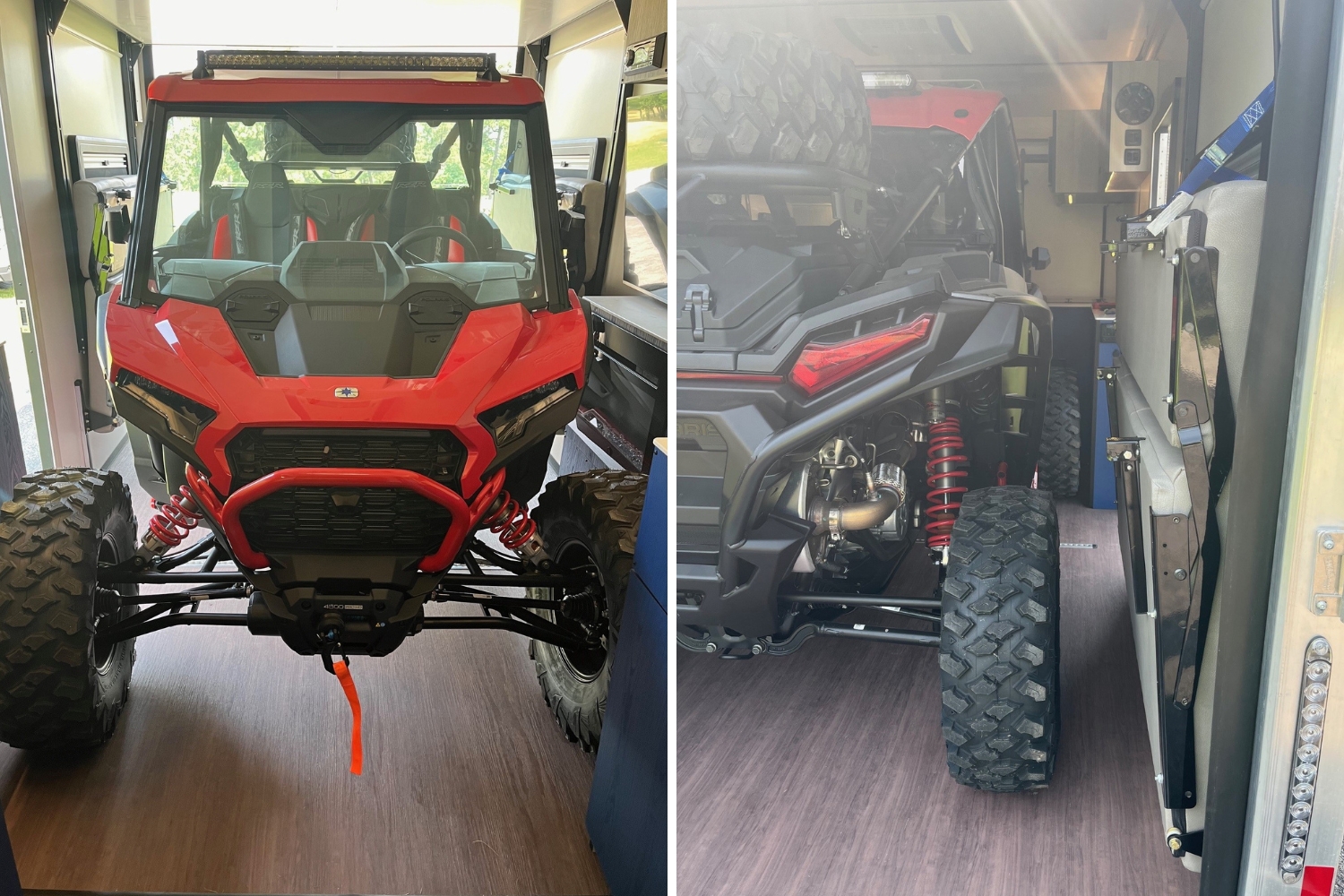

YOU’VE GOT IT, WE CAN HAUL IT
FLOOR PLANS

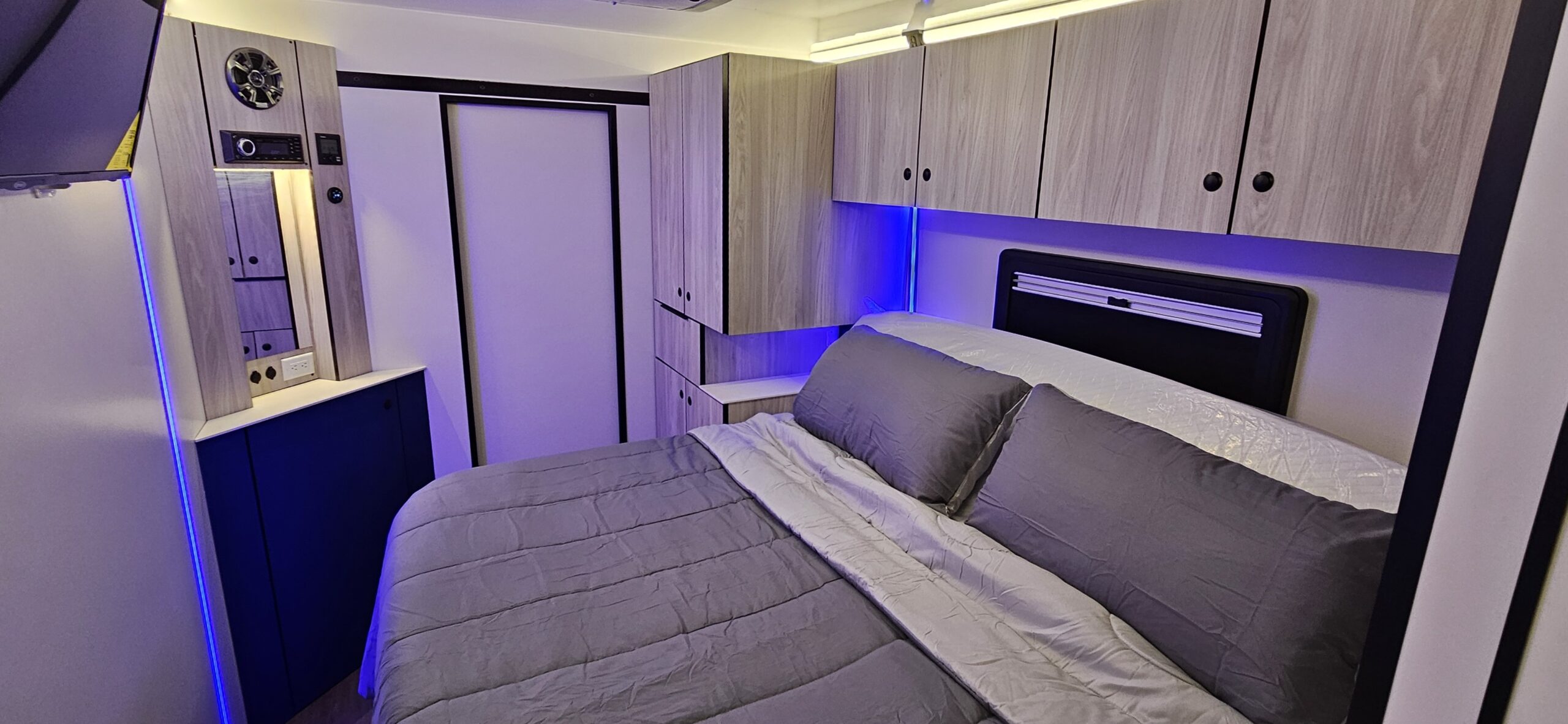

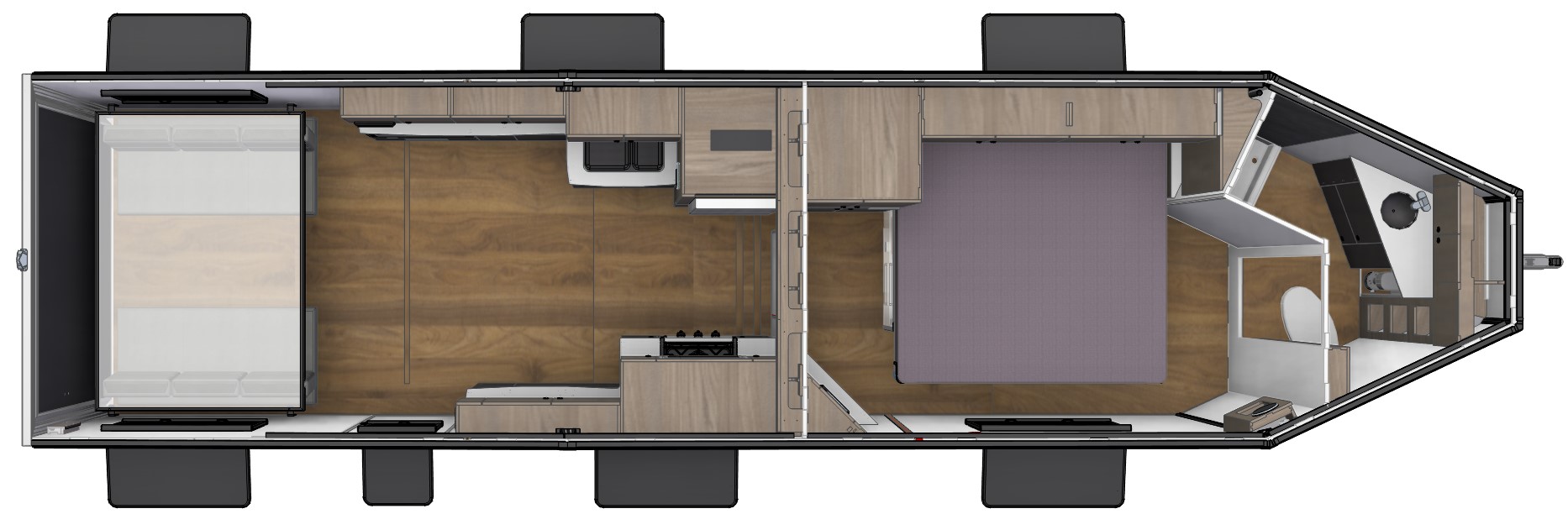

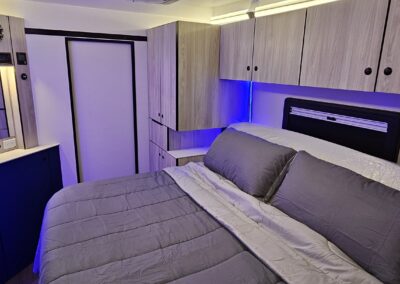

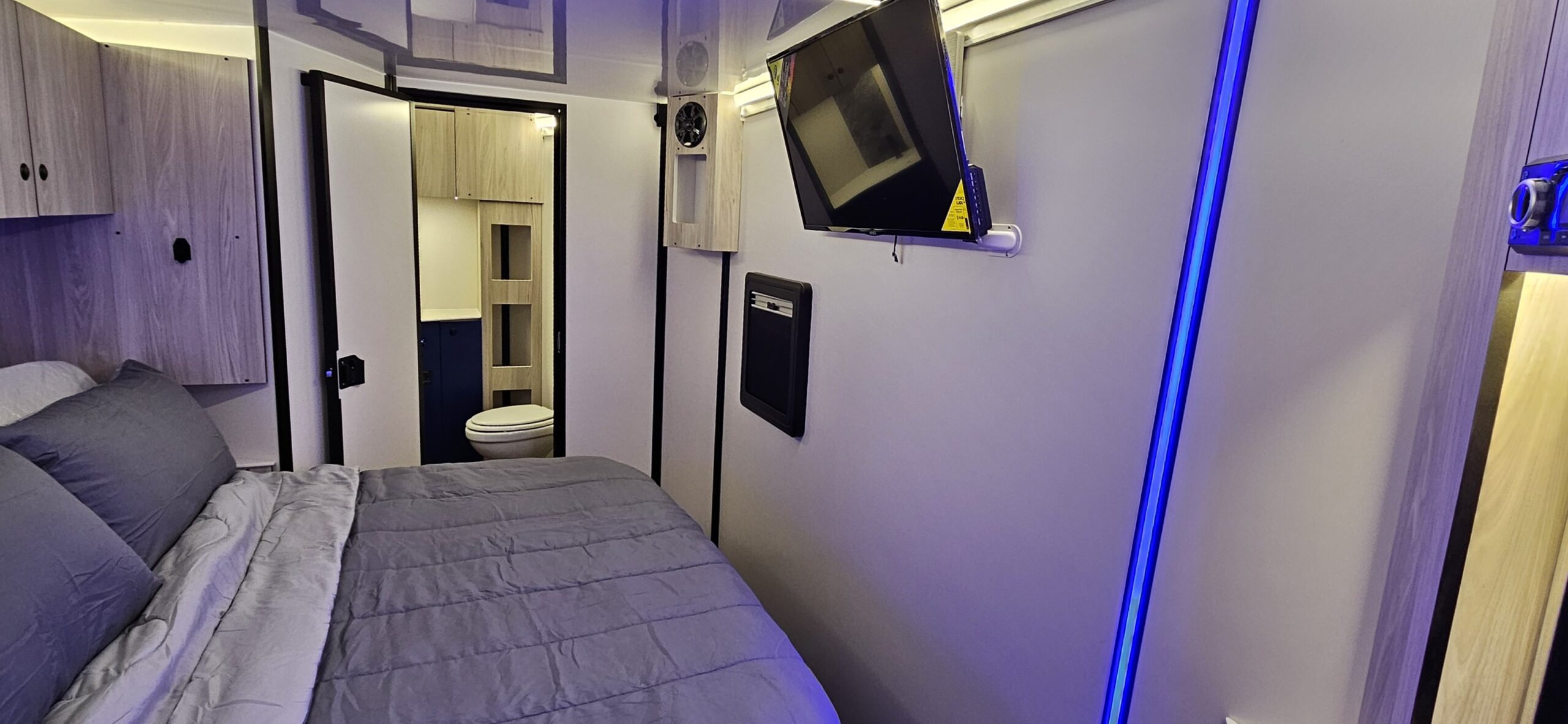

King Tilt Bed in Bedroom

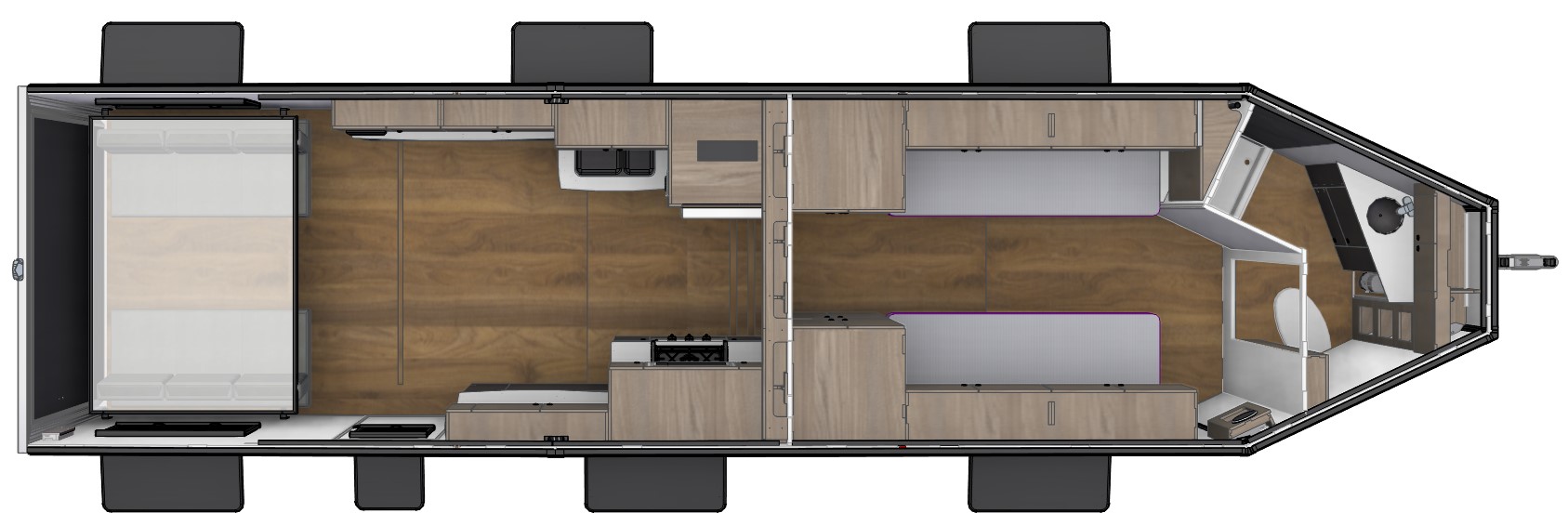

Two Twin Beds in Bedroom
VIDEO WALKTHROUGH OF THE 8032RV
Higher Quality
COMPOSITE PANEL CONSTRUCTION
100% composite panel construction is extremely lightweight, strong, durable, dent-resistant, and waterproof.
STAY WARM OR COOL
The best insulated trailers on the market allow for quick and easy heat up or cool down for maximum comfort with minimal power needs.
GROUND CLEARANCE
Torsion suspension and open undercarriage design improves approach angles and increases off-road capability. Wiring is protected inside the trailer and not exposed under the frame.
Custom Order Yours Today!
